Technical Specifications
Parameters and characteristics for this part
| Specification | 8778 060500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 8.94 mm |
| Jacket (Insulation) Diameter [diameter] | 0.352 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.864 mm |
| Jacket (Insulation) Thickness | 0.034 in |
| Jacket Color | Chrome |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 12 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2919 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Audio, Instrumentation, Control |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8778 Series

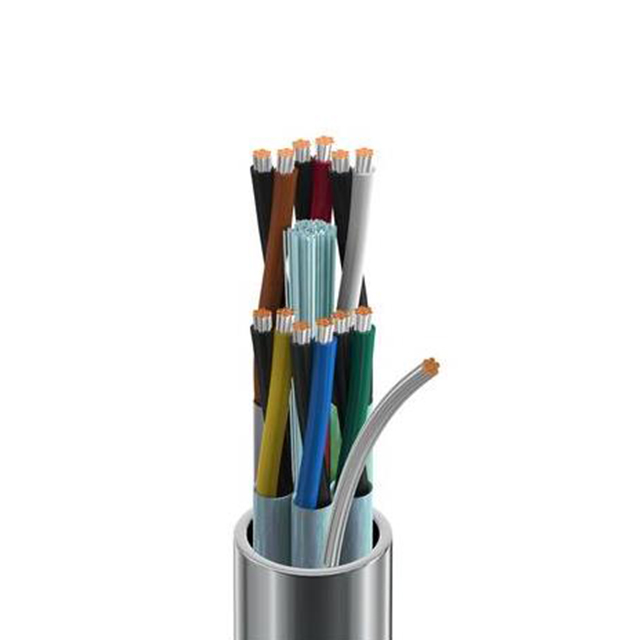

The 8778 060500 is a 500ft 6-pair 12-conductor shielded CM-rated Cable with 22AWG stranded (7 x 30) tinned copper conductor, polypropylene insulation, Beldfoil® aluminum foil-polyester tape (100% coverage) and chrome overall PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
