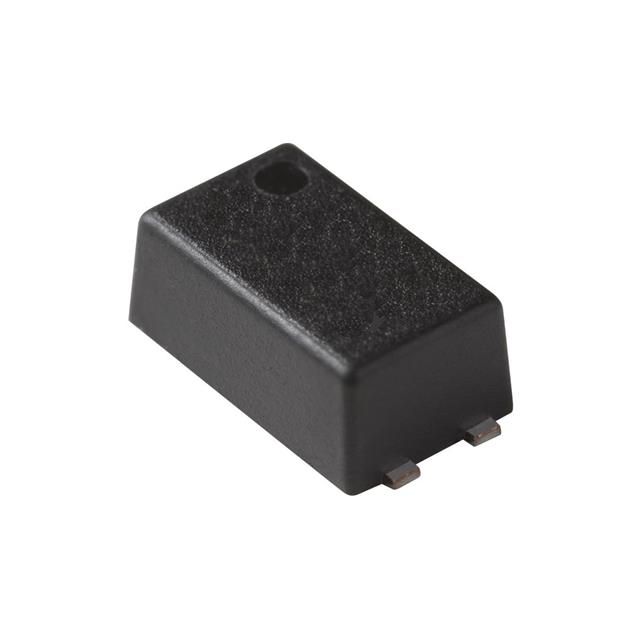

AQY206GVY
ActivePanasonic Electric Works
RELAY PHOTOMOS 600V 0.150A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AQY206GVY
ActivePanasonic Electric Works
RELAY PHOTOMOS 600V 0.150A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AQY206GVY |
|---|---|
| Approval Agency | BSI, cURus |
| Load Current | 150 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 15 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SMD, Flat Leads |
| Supplier Device Package | 4-SSOP |
| Termination Style | SMD (SMT) Tab |
| Voltage - Input [Max] | 1.7 VDC |
| Voltage - Input [Min] | 1.47 VDC |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3500 | $ 10.01 | |
Description
General part information
AQY206 Series
Solid State SPST-NO (1 Form A) 4-SMD, Flat Leads
