7916AP 8771000

Active

Belden Inc.

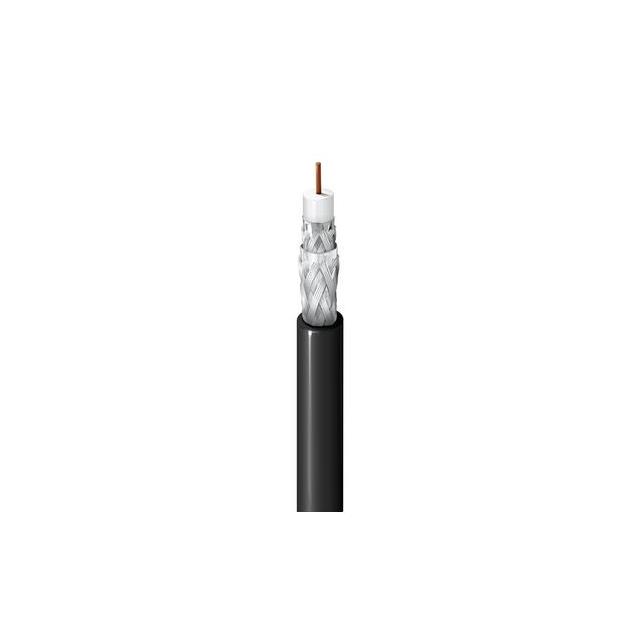

COAX 75 OHM RG6 18AWG PLENUM

Search across all available documentation for this part.

Active

Belden Inc.

COAX 75 OHM RG6 18AWG PLENUM

Technical Specifications

Parameters and characteristics for this part

Specification	7916AP 8771000

Cable Group	RG-6
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.17 in
Dielectric Diameter [diameter]	4.32 mm
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.248 in
Jacket (Insulation) Diameter [diameter]	6.3 mm
Jacket Color	Natural
Length	304.8 m
Length	1000 ft
Shield Coverage	100 %, 60 %, 40 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Dielectric Material	Cable Type	Shield Coverage	Cable Group	Length	Length	Jacket Color	Impedance	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Type	Wire Gauge	VoP, Velocity of Propagation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]
Belden Inc. 7916A 010500	Poly-Vinyl Chloride (PVC)	Foam Polyethylene (FPE)	Coaxial	40 % 60 % 100 %	RG-6	152.4 m	6000 in	Black	75 Ohms	Aluminum	-40 °C	80 C	Copper Bare	Braid Foil	18 AWG	83	7.57 mm	0.298 "	Solid	0.18 in	4.57 mm
Belden Inc. 7916A 010U1000	Poly-Vinyl Chloride (PVC)	Foam Polyethylene (FPE)	Coaxial	40 % 60 % 100 %	RG-6	304.8 m	1000 ft	Black	75 Ohms	Aluminum	-40 °C	80 C	Copper Bare	Braid Foil	18 AWG	83	7.57 mm	0.298 "	Solid	0.18 in	4.57 mm
Belden Inc. 7916AP 8771000		Foam Fluorinated Ethylene Propylene (FFEP)	Coaxial - Plenum	40 % 60 % 100 %	RG-6	304.8 m	1000 ft	Natural	75 Ohms	Aluminum			Copper Bare	Braid Foil	18 AWG	83	6.3 mm	0.248 in	Solid	0.17 in	4.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.96

General part information

Coaxial - Plenum Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
