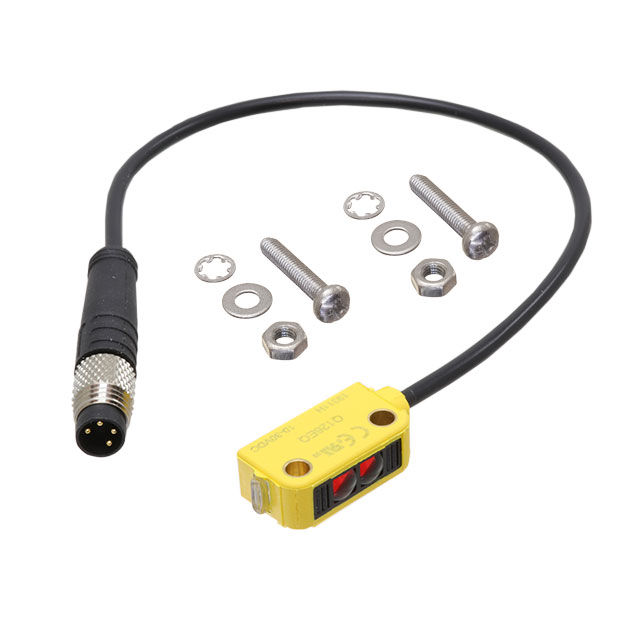

Q126EQ

Active

BANNER ENGINEERING

WORLD-BEAM Q12 SERIES: EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORLD-BEAM Q12 SERIES: EMITTER

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Connection Method	Response Time	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Light Source	Cable Length	Cable Length
BANNER ENGINEERING Q126EQ	LED	Connector	1.3 ms	Through-Beam	55 °C	-20 C	IEC IP67	30 VDC	10 VDC	78.74 "	2 m
BANNER ENGINEERING Q126ECR	Red	Cable	1.3 µs	Through-Beam	55 °C	-20 C	IEC IP67	30 VDC	10 VDC	78.74 "	2 m	640 nm	78.74 in	2 m
BANNER ENGINEERING Q126EQ3	LED	Connector	1.3 ms	Through-Beam	55 °C	-20 C	IEC IP67	30 VDC	10 VDC	78.74 "	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 66.00
Newark	Each	1	$ 96.60

General part information

Through-Beam Optical Sensor 78.740" (2m)
