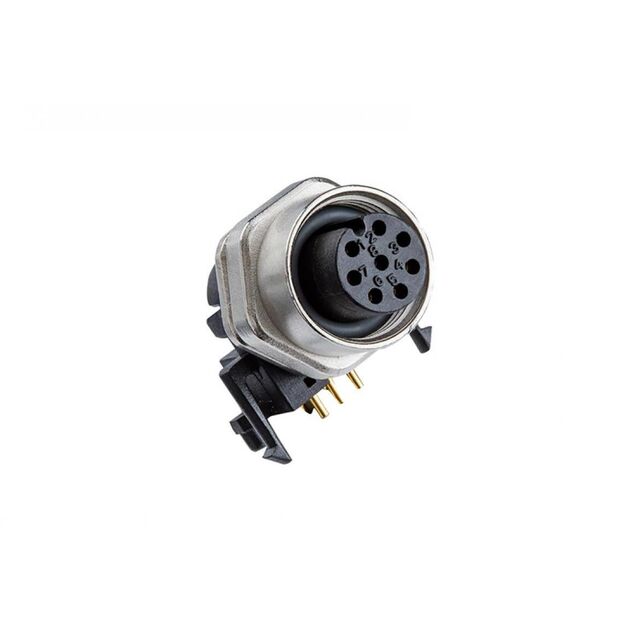

MSAS-04PFFR-SF7003
ActiveAmphenol LTW
M12 CONN R/A ACODE SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSAS-04PFFR-SF7003
ActiveAmphenol LTW
M12 CONN R/A ACODE SHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAS-04PFFR-SF7003 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.83 | |
| 10 | $ 8.84 | |||
| 25 | $ 8.33 | |||
| 45 | $ 8.12 | |||
| 90 | $ 7.90 | |||
| 270 | $ 7.05 | |||
| 450 | $ 6.62 | |||
| 945 | $ 5.85 | |||
Description
General part information
MSAS-04PFFR Series
4 Position Circular Connector Plug, Female Sockets Solder
