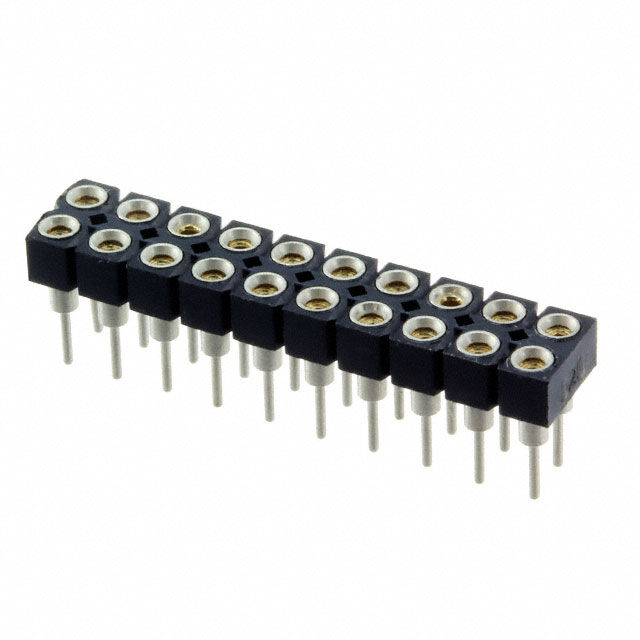

SD-122-TT-2

Active

Samtec Inc.

CONN SOCKET STRIP SKT 44 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET STRIP SKT 44 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions Loaded	Contact Shape	Contact Finish - Mating	Number of Positions	Number of Rows	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Material	Contact Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating
Samtec Inc. SD-122-T-2	All	Circular	Gold	44	2	Solder	3.18 mm	0.125 in	Tin	Beryllium Copper	Female Socket	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	-55 °C	125 °C	Push-Pull	Black	30 Áin	0.76 Ám	Through Hole	Receptacle	0.1 in	2.54 mm
Samtec Inc. SD-122-TT-2	All	Circular		44	2	Solder	3.18 mm	0.125 in	Tin	Beryllium Copper	Female Socket	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	-55 °C	105 ░C	Push-Pull	Black			Through Hole	Receptacle	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin

Technical documentation and resources

No documents available
