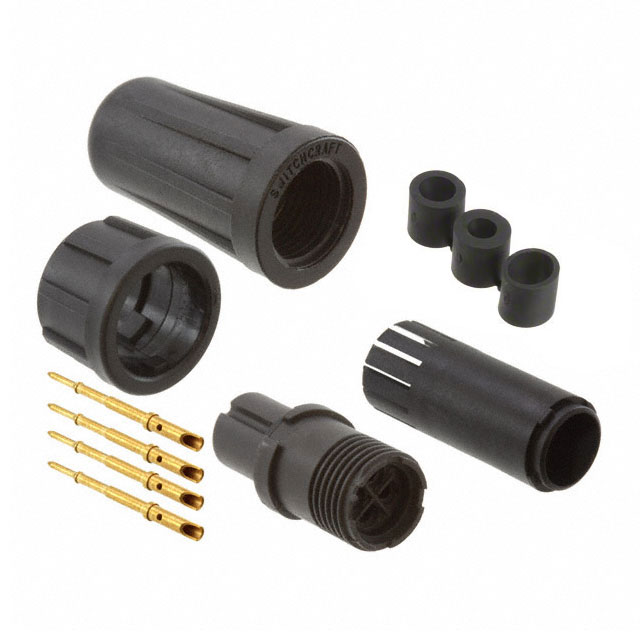

EN2C4M22DC

Active

Switchcraft Inc.

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C4M22DC

Active

Switchcraft Inc.

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.36
		10	$ 6.63
		25	$ 6.24
		50	$ 6.08
		100	$ 5.92
		300	$ 5.64

Description

General part information

EN2C4M Series

4 Position Circular Connector Plug, Male Pins Crimp or Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C4M22DC	EN2C4M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	1.5 A	1.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C4M Series

CONN PLUG MALE 4POS GOLD CRIMP

Part	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Connector Type	Mounting Type	Insert Material	Number of Positions	Ingress Protection	Voltage Rating	Shielding	Orientation	Applications	Termination	Backshell Material, Plating	Fastening Type	Color	Features	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. EN2C4M22DC	Gold	Copper Alloy	1.5 A	85 °C	-40 °C	Plastic	Male Pins, Plug	Free Hanging (In-Line)	Elastomer	4	IP66, IP67, IP68	125 VAC	Unshielded	Keyed	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Thermoplastic	Bayonet Lock	Black	Backshell, Coupling Nut	UL94 V-0
Switchcraft Inc. EN2C4M22G1W	Gold	Copper Alloy	1.5 A	85 °C	-40 °C	Plastic	Male Pins, Plug	Free Hanging (In-Line)	Elastomer	4	IP66, IP67, IP68	125 VAC	Unshielded	Keyed	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Thermoplastic	Bayonet Lock	Black	Backshell, Coupling Nut, Winged	UL94 V-0	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C4M22G1	Gold	Copper Alloy	1.5 A	85 °C	-40 °C	Plastic	Male Pins, Plug	Free Hanging (In-Line)	Elastomer	4	IP66, IP67, IP68	125 VAC	Unshielded	Keyed	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Thermoplastic	Bayonet Lock	Black	Backshell, Coupling Nut	UL94 V-0	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C4M22G2W	Gold	Copper Alloy	1.5 A	85 °C	-40 °C	Plastic	Male Pins, Plug	Free Hanging (In-Line)	Elastomer	4	IP66, IP67, IP68	125 VAC	Unshielded	Keyed	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Thermoplastic	Bayonet Lock	Black	Backshell, Coupling Nut, Winged	UL94 V-0			4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C4M22G3W	Gold	Copper Alloy	1.5 A	85 °C	-40 °C	Plastic	Male Pins, Plug	Free Hanging (In-Line)	Elastomer	4	IP66, IP67, IP68	125 VAC	Unshielded	Keyed	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Thermoplastic	Bayonet Lock	Black	Backshell, Coupling Nut, Winged	UL94 V-0							0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C4M22G2	Gold	Copper Alloy	1.5 A	85 °C	-40 °C	Plastic	Male Pins, Plug	Free Hanging (In-Line)	Elastomer	4	IP66, IP67, IP68	125 VAC	Unshielded	Keyed	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Thermoplastic	Bayonet Lock	Black	Backshell, Coupling Nut	UL94 V-0			4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C4M22G3	Gold	Copper Alloy	1.5 A	85 °C	-40 °C	Plastic	Male Pins, Plug	Free Hanging (In-Line)	Elastomer	4	IP66, IP67, IP68	125 VAC	Unshielded	Keyed	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Thermoplastic	Bayonet Lock	Black	Backshell, Coupling Nut	UL94 V-0							0.18 in	0.22 in	4.57 mm	5.59 mm
