776280-6
ObsoleteTE Connectivity AMP Connectors

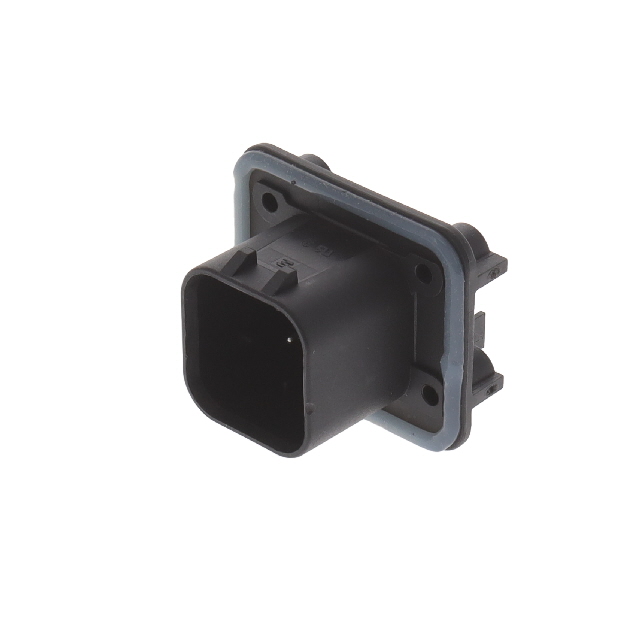

CONN HEADER R/A 8POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776280-6
ObsoleteTE Connectivity AMP Connectors
CONN HEADER R/A 8POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776280-6 | 776280 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Board Guide, Sealed | Board Guide, Sealed |
| Insulation Color | Orange | Orange, Natural |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 8 | 8 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776280 Series
CONN HEADER R/A 8POS 4MM
| Part | Mounting Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Shrouding | Current Rating (Amps) | Number of Positions | Contact Material | Features | Contact Shape | Insulation Material | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Style | Applications | Contact Type | Termination | Connector Type | Pitch - Mating | Pitch - Mating | Fastening Type | Voltage Rating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776280-6 | Panel Mount, Right Angle, Through Hole | All | -40 °C | 105 ░C | 3 | Shrouded - 4 Wall | Varies by Wire Gauge | 8 | Brass | Board Guide, Sealed | Circular | Polybutylene Terephthalate (PBT), Glass Filled | Orange | 0.157 in | 4 mm | Board to Cable/Wire | Automotive, Industrial | Male Pin | Solder | Header | 0.157 " | 4 mm | Locking Ramp | 250 VAC | |
TE Connectivity AMP Connectors 1-776280-2 | Panel Mount, Right Angle, Through Hole | All | -40 °C | 125 °C | 3 | Shrouded - 4 Wall | Varies by Wire Gauge | 8 | Brass | Board Guide, Sealed | Circular | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 0.157 in | 4 mm | Board to Cable/Wire | Automotive, Industrial | Male Pin | Solder | Header | 0.157 " | 4 mm | Locking Ramp | 250 VAC | Gold-Palladium |
TE Connectivity AMP Connectors 776280-2 | Panel Mount, Right Angle, Through Hole | All | -40 °C | 105 ░C | 3 | Shrouded - 4 Wall | Varies by Wire Gauge | 8 | Brass | Board Guide, Sealed | Circular | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 0.157 in | 4 mm | Board to Cable/Wire | Automotive, Industrial | Male Pin | Solder | Header | 0.157 " | 4 mm | Locking Ramp | 250 VAC |
