776280-2

Active

TE Connectivity AMP Connectors

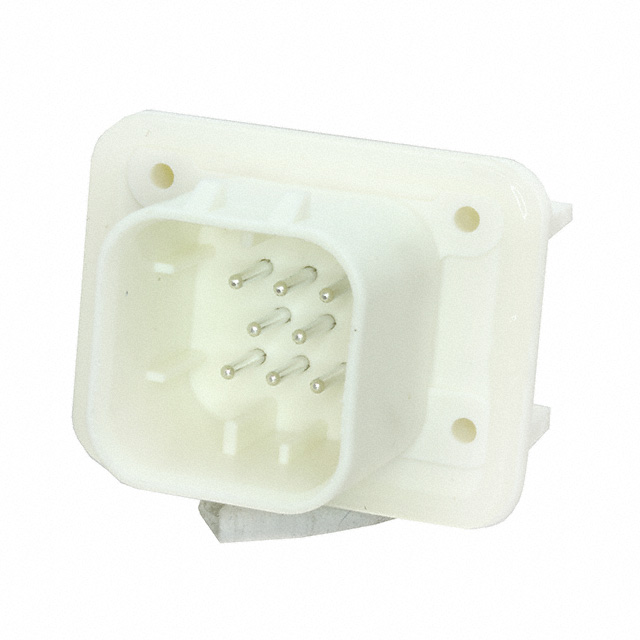

CONN HEADER R/A 8POS 4MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 8POS 4MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Panel Mount, Through Hole, Right Angle 8 position 0.157" (4.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	776280-2	776280 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide, Sealed	Board Guide, Sealed
Insulation Color	Natural	Orange, Natural
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER R/A 8POS 4MM

Part	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Shrouding	Current Rating (Amps)	Number of Positions	Contact Material	Features	Contact Shape	Insulation Material	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Style	Applications	Contact Type	Termination	Connector Type	Pitch - Mating	Pitch - Mating	Fastening Type	Voltage Rating	Contact Finish - Mating
TE Connectivity AMP Connectors 776280-6	Panel Mount, Right Angle, Through Hole	All	-40 °C	105 ░C	3	Shrouded - 4 Wall	Varies by Wire Gauge	8	Brass	Board Guide, Sealed	Circular	Polybutylene Terephthalate (PBT), Glass Filled	Orange	0.157 in	4 mm	Board to Cable/Wire	Automotive, Industrial	Male Pin	Solder	Header	0.157 "	4 mm	Locking Ramp	250 VAC
TE Connectivity AMP Connectors 1-776280-2	Panel Mount, Right Angle, Through Hole	All	-40 °C	125 °C	3	Shrouded - 4 Wall	Varies by Wire Gauge	8	Brass	Board Guide, Sealed	Circular	Polybutylene Terephthalate (PBT), Glass Filled	Natural	0.157 in	4 mm	Board to Cable/Wire	Automotive, Industrial	Male Pin	Solder	Header	0.157 "	4 mm	Locking Ramp	250 VAC	Gold-Palladium
TE Connectivity AMP Connectors 776280-2	Panel Mount, Right Angle, Through Hole	All	-40 °C	105 ░C	3	Shrouded - 4 Wall	Varies by Wire Gauge	8	Brass	Board Guide, Sealed	Circular	Polybutylene Terephthalate (PBT), Glass Filled	Natural	0.157 in	4 mm	Board to Cable/Wire	Automotive, Industrial	Male Pin	Solder	Header	0.157 "	4 mm	Locking Ramp	250 VAC
