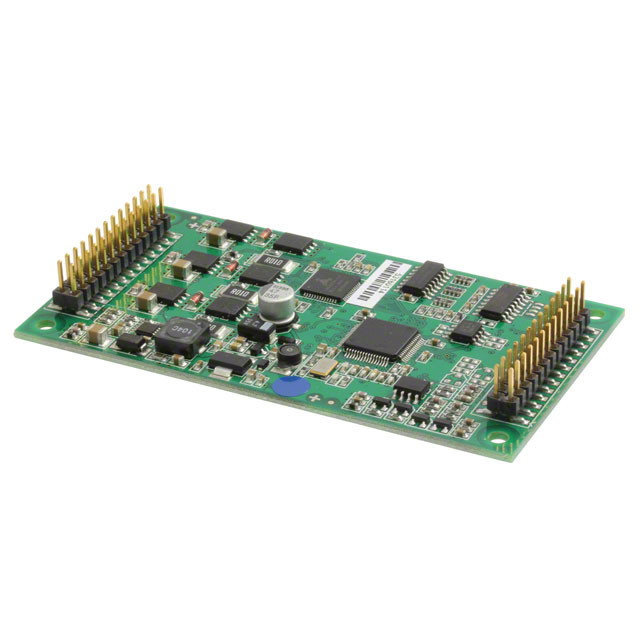

TMCM-1630-2C

Active

Analog Devices Inc./Maxim Integrated

BRUSHLESS DRIVER 10A 12-48V LOAD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BRUSHLESS DRIVER 10A 12-48V LOAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMCM-1630-2C	TMCM-1630 Series

Control / Drive Type	Brushless	Brushless
Current - Output	10 A	10 A
For Use With/Related Products	BB-163X	BB-163X
Interface	CAN, RS-232	RS-485, USB, CAN, RS-232
Motor Type	Brushless (BLDC)	Brushless (BLDC)
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Type	Board	Board
Voltage - Load [Max]	48 V	48 V
Voltage - Load [Min]	12 V	12 V
Voltage - Supply [Max]	48 V	48 V
Voltage - Supply [Min]	12 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

BRUSHLESS DRIVER 10A 12-48V LOAD

Part	Mounting Type	Interface	Current - Output	Motor Type	Type	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Control / Drive Type	For Use With/Related Products
Analog Devices Inc./Maxim Integrated TMCM-1630-4U	Chassis Mount	RS-485, USB	10 A	Brushless (BLDC)	Board	48 V	12 V	12 V	48 V	-25 °C	60 °C	Brushless
Analog Devices Inc./Maxim Integrated TMCM-1630-2C	Chassis Mount	CAN, RS-232	10 A	Brushless (BLDC)	Board	48 V	12 V	12 V	48 V	-25 °C	60 °C	Brushless	BB-163X

General part information

Brushless 12 ~ 48VDC Supply 10A 12 ~ 48V Load
