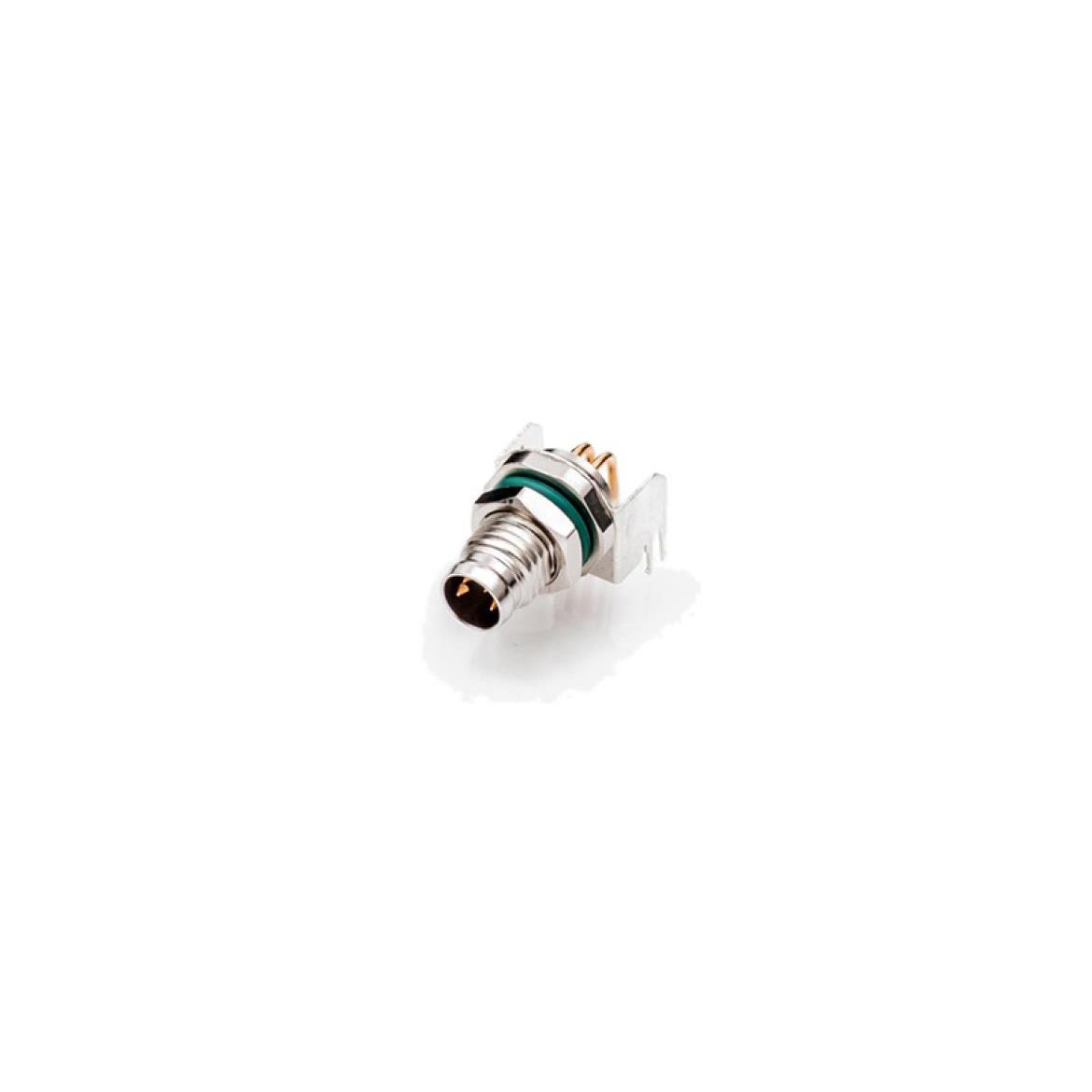

M8AS-05PMMR-SF8001

Active

Amphenol LTW

M SERIES, GUIDED M8, 1.5A, 05 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, GUIDED M8, 1.5A, 05 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M8AS-05PMMR-SF8001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Ground, Board Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Metal
Shell Size - Insert	M8-5
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Termination	Color	Current Rating (Amps)	Mounting Feature	Shell Size - Insert	Shielding	Ingress Protection	Connector Type	Insert Material	Voltage Rating	Shell Finish	Mounting Type	Orientation	Shell Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Primary Material	Contact Finish - Mating
Amphenol LTW M8AS-05PMMR-SF8001	Solder	Silver	1.5 A	Bulkhead - Front Side Nut	M8-5	Shielded	IP68 - Dust Tight Waterproof	Male Pins Receptacle	Polyamide (PA) Nylon Glass Filled	30 VDC	Nickel	Panel Mount Right Angle Through Hole	A	Metal	Copper Alloy	-40 °C	105 ░C	Board Lock Ground	Metal	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
