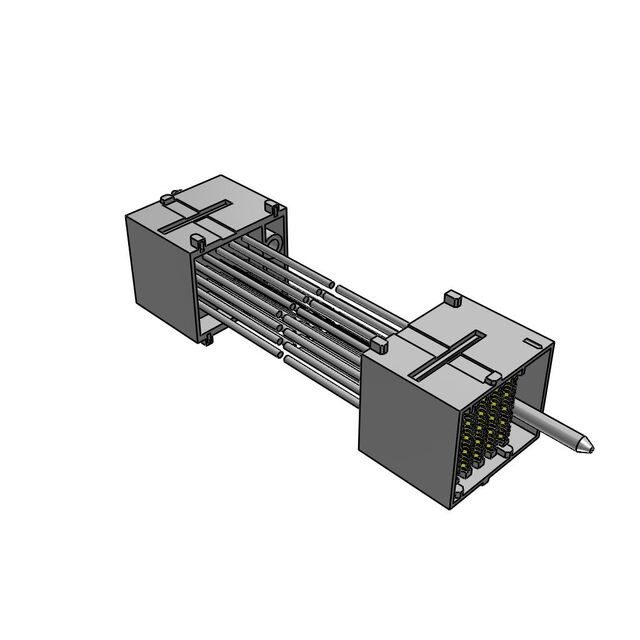

EBCM-1-4-10-1-R-N-06-1-R-N

Active

Samtec Inc.

CBL ASSY BPLANE M-M 40PAIR 6"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSY BPLANE M-M 40PAIR 6"

Technical Specifications

Parameters and characteristics for this part

Part	Color	Connector Type	Pitch - Connector	Pitch - Connector	Number of Positions	Contact Finish	Number of Rows	Cable Termination	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Shielding
Samtec Inc. EBCM-1-6-12-1-R-N-06-1-R-N	Blue Individual	Socket to Plug Reversed	2 mm	0.079 in	144	Tin	12	Crimp	152.4 mm	6 "	0.5 '	50 µin	1.27 µm	Unshielded
Samtec Inc. EBCM-1-4-10-1-L-N-06-1-L-N	Blue Individual	Socket to Plug Reversed	2 mm	0.079 in	80	Tin	10	Crimp	152.4 mm	6 "	0.5 '	50 µin	1.27 µm	Unshielded
Samtec Inc. EBCM-1-4-10-1-R-N-06-1-R-N	Blue Individual	Socket to Plug Reversed	2 mm	0.079 in	80	Tin	10	Crimp	152.4 mm	6 "	0.5 '	50 µin	1.27 µm	Unshielded
Samtec Inc. EBCM-1-6-12-1-L-N-06-1-L-N	Blue Individual	Socket to Plug Reversed	2 mm	0.079 in	144	Tin	12	Crimp	152.4 mm	6 "	0.5 '	50 µin	1.27 µm	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Cable Assembly Rectangular Socket to Plug, Reversed 0.500' (152.40mm, 6.00")
