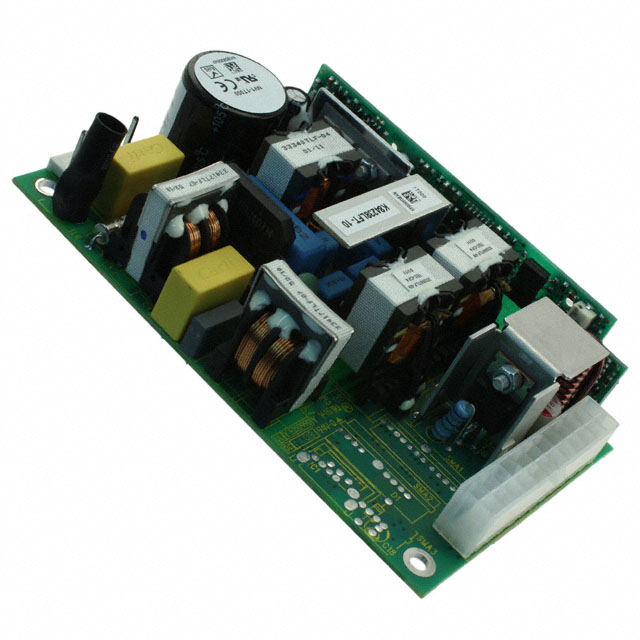

NV1-452FF

Active

TDK-LAMBDA

AC/DC CNVRTR 5V 2.7V +/-15V 175W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CNVRTR 5V 2.7V +/-15V 175W

Technical Specifications

Parameters and characteristics for this part

Specification	NV1-452FF

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	25 A
Current - Output 2	15 A
Current - Output 3	5 A
Current - Output 4	1 A
Efficiency	90 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	175 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.3 kV
Voltage - Output 1	5 V
Voltage - Output 2	2.7 V
Voltage - Output 3	15 V
Voltage - Output 4	-15 V

Part	Current - Output 2	Efficiency	Current - Output 1	Voltage - Output 1	Voltage - Output 3	Current - Output 3	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Mounting Type	Voltage - Isolation	Voltage - Output 4	Current - Output 4	Number of Outputs	Type	Features	Power (Watts)	Operating Temperature [Max]
TDK-LAMBDA NV1-452FF-N	15 A	90 %	25 A	5 V	15 V	5 A	90 VAC	264 VAC	ITE (Commercial) Medical	2.7 V	1.25 "	3.7 in	31.8 mm	127 mm	5 in	94 mm	CE	Chassis Mount	4.3 kV	-15 V	1 A	4	Open Frame	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	175 W	70 °C
TDK-LAMBDA NV1-452TT-N	15 A	90 %	25 A	5 V	12 V	5 A	90 VAC	264 VAC	ITE (Commercial) Medical	2.7 V	1.25 "	3 "	31.8 mm	127 mm	5 in	76.2 mm	CE	Chassis Mount	4.3 kV		1 A	4	Open Frame	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	175 W	70 °C
TDK-LAMBDA NV1-452FF	15 A	90 %	25 A	5 V	15 V	5 A	90 VAC	264 VAC	ITE (Commercial) Medical	2.7 V	1.25 "	3 "	31.8 mm	127 mm	5 in	76.2 mm	CE	Chassis Mount	4.3 kV	-15 V	1 A	4	Open Frame	Adjustable Output PFC Remote Sense Universal Input	175 W	70 °C
TDK-LAMBDA NV1-452FF-N-C	15 A	90 %	25 A	5 V	15 V	5 A	90 VAC	264 VAC	ITE (Commercial) Medical	2.7 V	1.25 "	3.7 in	31.8 mm	127 mm	5 in	94 mm	CE	Chassis Mount	4.3 kV	-15 V	1 A	4	Enclosed	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	175 W	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 243.71

General part information

Open Frame AC DC Converters 4 Output 5V 2.7V 15V -15V 90 ~ 264 VAC Input
