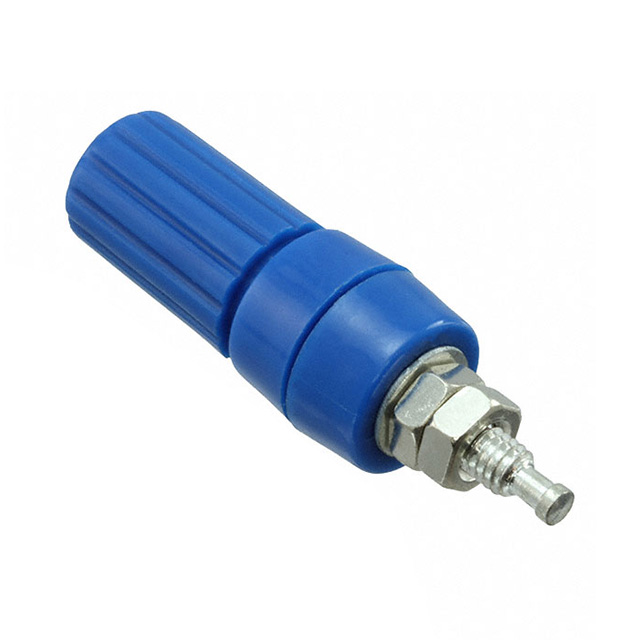

BU-P3760-6

Active

Mueller Electric Co

BINDING POST, TIN/BRASS BLUE

Search across all available documentation for this part.

Active

Mueller Electric Co

BINDING POST, TIN/BRASS BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P3760-6

Color	Blue
Cross Hole Diameter [diameter]	0.096 in
Cross Hole Diameter [diameter]	2.43 mm
Current Rating (Amps)	15 A
Head Size	11.18 mm
Head Size [diameter]	0.44 "
Head Style	Fluted
Material - Body	Brass
Material - Insulation	Polycarbonate
Material - Insulation	PC
Plating - Body	Nickel
Termination	Turret, Threaded
Type	Standard
Voltage Rating	2500 V

Part	Voltage Rating	Plating - Body	Color	Termination	Material - Body	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Material - Insulation	Material - Insulation	Type	Head Style	Head Size [diameter]	Head Size	Current Rating (Amps)
Mueller Electric Co BU-P3760-9	2500 V	Nickel	White	Threaded Turret	Brass	0.096 in	2.43 mm	Polycarbonate	PC	Standard	Fluted	0.44 "	11.18 mm	15 A
Mueller Electric Co BU-P3760-5	2500 V	Nickel	Green	Threaded Turret	Brass	0.096 in	2.43 mm	Polycarbonate	PC	Standard	Fluted	0.44 "	11.18 mm	15 A
Mueller Electric Co BU-P3760-0	2500 V	Nickel	Black	Threaded Turret	Brass	0.096 in	2.43 mm	Polycarbonate	PC	Standard	Fluted	0.44 "	11.18 mm	15 A
Mueller Electric Co BU-P3760-6	2500 V	Nickel	Blue	Threaded Turret	Brass	0.096 in	2.43 mm	Polycarbonate	PC	Standard	Fluted	0.44 "	11.18 mm	15 A
Mueller Electric Co BU-P3760-4	2500 V	Nickel	Yellow	Threaded Turret	Brass	0.096 in	2.43 mm	Polycarbonate	PC	Standard	Fluted	0.44 "	11.18 mm	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Binding Post Connector Standard Fluted Blue Nickel
