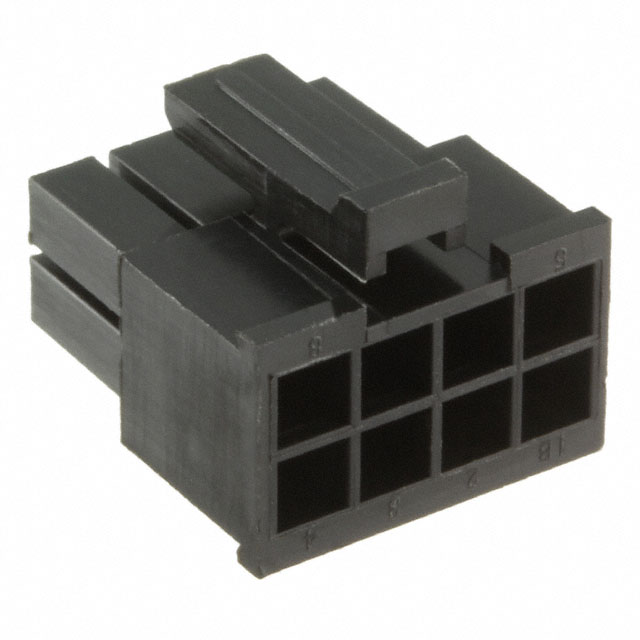

10127716-08LF
ActiveAmphenol ICC (FCI)
CONN RCPT HSG 8POS 3.00MM
Deep-Dive with AI
Search across all available documentation for this part.
10127716-08LF
ActiveAmphenol ICC (FCI)
CONN RCPT HSG 8POS 3.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10127716-08LF |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
| Row Spacing [x] | 0.118 in |
| Row Spacing [x] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.17 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
Description
General part information
10127716 Series
8 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
