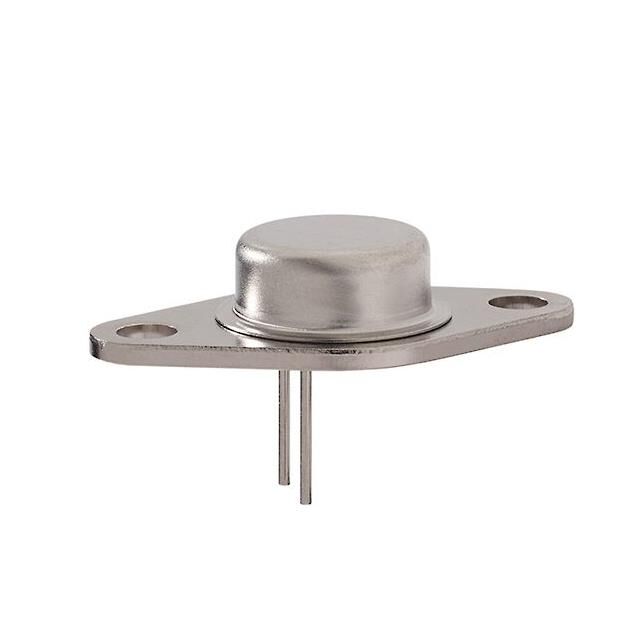

ST6040A

Active

Microchip Technology

DIODE ARRAY GP 400V 20A TO204AA

Search across all available documentation for this part.

Active

Microchip Technology

DIODE ARRAY GP 400V 20A TO204AA

Technical Specifications

Parameters and characteristics for this part

Specification	ST6040A

Current - Average Rectified (Io) (per Diode)	20 A
Current - Reverse Leakage @ Vr	10 µA
Diode Configuration	1 Pair Common Anode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	TO-3, TO-204AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TO-204AA (TO-3)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE ARRAY GP 400V 20A TO204AA

Part	Voltage - Forward (Vf) (Max) @ If	Technology	Package / Case	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package
Microchip Technology ST6040A	1 V	Standard	TO-204AA, TO-3	10 µA	20 A	1 Pair Common Anode	Standard Recovery >500ns	200 mA	400 V	Through Hole	175 ░C	-65 C	TO-204AA (TO-3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 68.38

General part information

Diode Array 1 Pair Common Anode 400 V 20A Through Hole TO-204AA, TO-3
