UST-12/250-D48-C

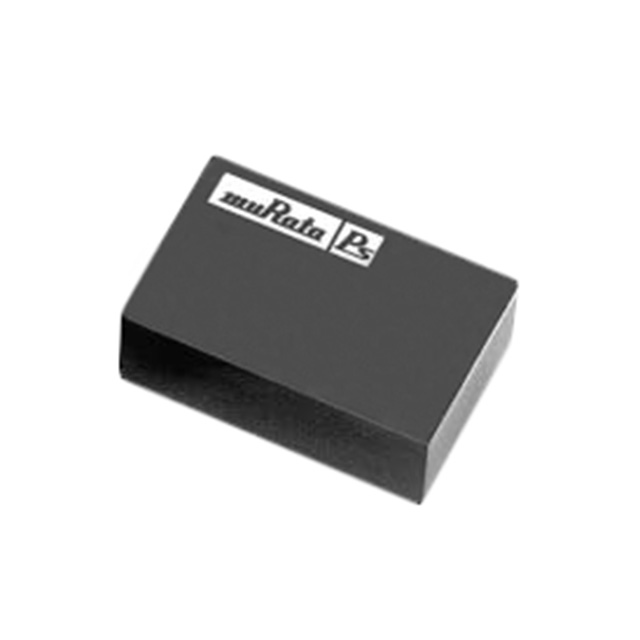

ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 3 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
UST-12/250-D48-C
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 3 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UST-12/250-D48-C | UST-12 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 250 mA | 250 mA |
| Efficiency | 77 % | 77 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module | 8-DIP Module |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.25 " | 1.25 " |
| Size / Dimension [x] | 31.8 mm | 31.8 mm |
| Size / Dimension [y] | 0.8 in | 0.8 in |
| Size / Dimension [y] | 20.3 mm | 20.3 mm |
| Size / Dimension [z] | 0.45 " | 0.45 " |
| Size / Dimension [z] | 11.4 mm | 11.4 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V | 72 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UST-12 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 3 W, 1 OUTPUT, 12 V
| Part | Power (Watts) | Type | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Applications | Voltage - Isolation | Efficiency | Package / Case | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UST-12/250-D48-C | 3 W | Isolated Module | Through Hole | 0.8 in | 1.25 " | 0.45 " | 11.4 mm | 31.8 mm | 20.3 mm | 72 V | 12 V | ITE (Commercial) | 1000 V | 77 % | 8-DIP Module | 18 V | -40 °C | 75 ░C | 1 | 250 mA |
Murata Power Solutions Inc. UST-12/250-D48-C |
Description
General part information
UST-12 Series
The UST series single-output DC/DC Converter achieves this best-of-both-worlds status by implementing proven circuit architecture as a full, SMT-on-PCB assembly that is truly 100% automatically assembled. It is requiring no external components, device DC/DC bring true component like convenience to designers of todays distributed power systems. Output voltages are 5, 12 or 15V. Input voltage ranges an ultra-wide 18 to 72V. The device is fully isolated and includes input (pi-type) and output filters. Output transient response is a quick 200µsec, while output ripple and noise are typically 75mVp-p. This rugged module is fully encapsulated with a thermally conductive potting compound that contributes to its outstanding moisture/vibration resistance and impressive MTBF. It operates over the full -40 to 75°C temperature range without derating. It been thoroughly characterized, qualified and EMI/EMC tested.
