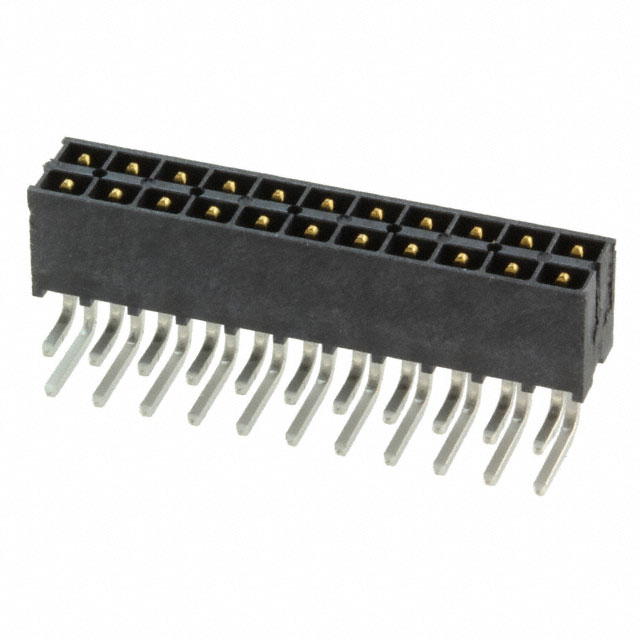

IPT1-111-01-S-D-RA

Active

Samtec Inc.

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Mini Mate® Isolated Power Connector Terminal Strip IPT1 Datasheet +1

IPT1-111-01-S-D-RA

Active

Samtec Inc.

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

Documents.100" Mini Mate® Isolated Power Connector Terminal Strip IPT1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT1-111-01-S-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.94 mm
Contact Length - Mating	0.155 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPT1-111 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Type	Mounting Type	Number of Positions	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Voltage Rating	Number of Positions Loaded	Connector Type	Current Rating (Amps)	Contact Finish - Mating	Termination	Features	Insulation Material	Contact Finish - Post	Fastening Type	Shrouding	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. IPT1-111-01-S-D-VS-A	-55 °C	125 °C	Square	Phosphor Bronze	30 Áin	0.76 Ám	Black	3.94 mm	0.155 in	Male Pin	Surface Mount	22 positions	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	2	775 VAC 1095 VDC	All	Header	2.3 A	Gold	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Tin	Push-Pull	Shrouded - 4 Wall	6.35 mm	0.25 in
Samtec Inc. IPT1-111-01-S-D	-55 °C	125 °C	Square	Phosphor Bronze	30 Áin	0.76 Ám	Black	3.94 mm	0.155 in	Male Pin	Through Hole	22 positions	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	2	775 VAC 1095 VDC	All	Header	2.3 A	Gold	Solder		Liquid Crystal Polymer (LCP)	Tin	Push-Pull	Shrouded - 4 Wall	6.35 mm	0.25 in	2.16 mm	0.085 in	8.51 mm	0.335 in
Samtec Inc. IPT1-111-01-S-D-RA	-55 °C	125 °C	Square	Phosphor Bronze	30 Áin	0.76 Ám	Black	3.94 mm	0.155 in	Male Pin	Through Hole Right Angle	22 positions	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	2	775 VAC 1095 VDC	All	Header	2.3 A	Gold	Solder		Liquid Crystal Polymer (LCP)	Tin	Push-Pull	Shrouded - 4 Wall			2.29 mm	0.09 "
Samtec Inc. IPT1-111-03-S-D	-55 °C	125 °C	Square	Phosphor Bronze	30 Áin	0.76 Ám	Black	3.94 mm	0.155 in	Male Pin	Through Hole	22 positions	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	2	775 VAC 1095 VDC	All	Header	2.3 A	Gold	Solder		Liquid Crystal Polymer (LCP)	Tin	Push-Pull	Shrouded - 4 Wall	11.3 mm	0.445 in	2.16 mm	0.085 in	13.46 mm	0.53 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.51
		25	$ 4.98
		50	$ 4.63
		100	$ 4.41
		500	$ 4.11

Description

General part information

IPT1-111 Series

Connector Header Through Hole, Right Angle 22 position 0.100" (2.54mm)

Documents

Technical documentation and resources

.100" Mini Mate® Isolated Power Connector Terminal Strip

IPT1 Datasheet

Datasheet
