1376478-2

Active

TE Connectivity AMP Connectors

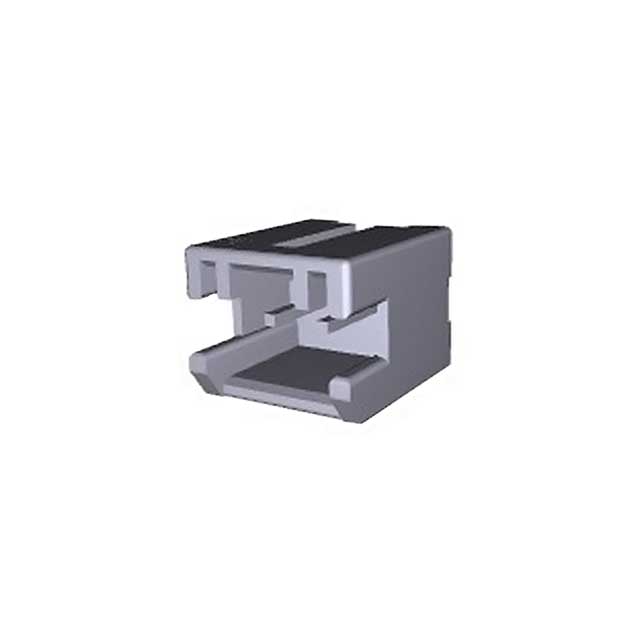

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1376478-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.55
		10	$ 0.53
		400	$ 0.40
		800	$ 0.40

Description

General part information

1376478 Series

Connector Header Through Hole 2 position 0.098" (2.50mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376478-2	1376478 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Latch Holder	Latch Holder
Features	Board Guide	Board Guide
Insulation Color	Natural	Natural
Insulation Height [z]	0.346 in	0.346 in
Insulation Height [z]	8.8 mm	8.8 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2 - 7
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder
Voltage Rating	50 V	50 V

1376478 Series

CONN HEADER VERT 2POS 2.5MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post [x]	Connector Type	Insulation Material	Mounting Type	Style	Voltage Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Height [z]	Insulation Height [z]	Features	Fastening Type	Shrouding	Termination	Contact Material	Number of Positions	Contact Type	Current Rating (Amps)	Number of Rows	Applications	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating
TE Connectivity AMP Connectors 1376478-2	-30 ░C	105 ░C	3.2 mm	0.126 in	Header	Polyamide (PA66), Nylon 6/6, Glass Filled	Through Hole	Board to Cable/Wire	50 V	Natural	2.5 mm	0.098 in	Square	0.346 in	8.8 mm	Board Guide	Latch Holder	Shrouded - 4 Wall	Kinked Pin, Solder	Brass	2	Male Pin	Varies by Wire Gauge	1	General Purpose	Tin	All	UL94 V-0
