1-1102290-6
ActiveTE Connectivity AMP Connectors

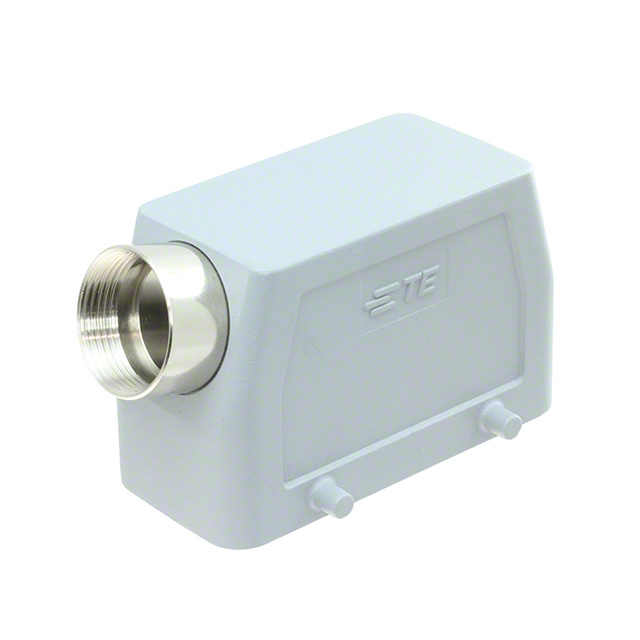

CONN HOOD SIDE ENTRY SZ6 PG21
Deep-Dive with AI
Search across all available documentation for this part.
1-1102290-6
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ6 PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1102290-6 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Lock Location | Locking Clip (2) on Base Bottom |
| Size | 6 |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 60 mm |
| Size / Dimension [z] | 2.362 " |
| Style | Side Entry |
| Thread Size | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 47.26 | |
1102290 Series
CONN HOOD SIDE ENTRY SZ6 PG21
| Part | Style | Lock Location | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Connector Type | Housing Color | Housing Finish | Housing Material | Size | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102290-6 | Side Entry | Locking Clip (2) on Base Bottom | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Hood | Gray | Powder Coated | Aluminum Alloy, Die Cast | 6 | PG21 |
Description
General part information
1102290 Series
Hood Connector Side Entry PG21 6
Documents
Technical documentation and resources
No documents available
