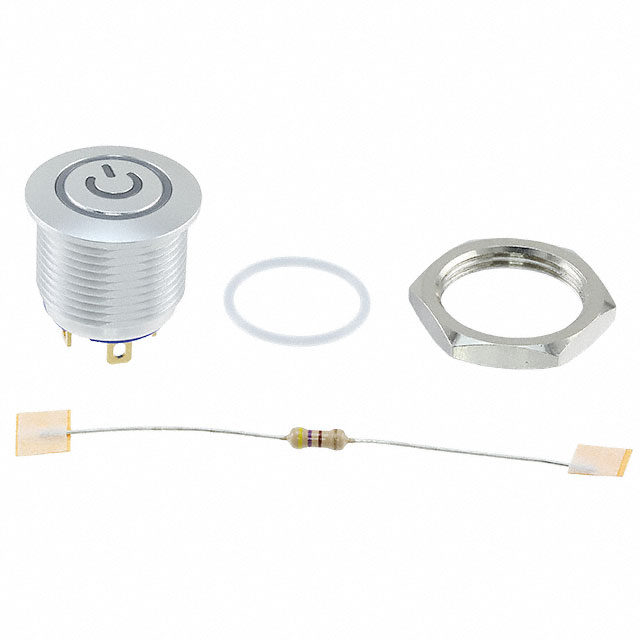

AV1610P712R04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 2A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AV1610P712R04

Actuator Marking	Power Symbol
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	36 VDC

ALCOSWITCH AV16 Series

Part	Actuator Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Mounting Type	Electrical Life	Circuit	Ingress Protection	Mechanical Life	Color - Actuator/Cap	Voltage Rating - DC	Termination Style	Type	Illumination Type, Color	Illumination Voltage (Nominal)	Features
TE Connectivity Raychem Cable Protection AV1610000R04	Button Flush Round	2 A	-20 C	70 °C	Off-Mom	No Marking	16 mm	Panel Mount Front	200000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	Silver	36 VDC	Solder Lug	Anti-Vandal
TE Connectivity Raychem Cable Protection AV1610P712R04	Button Flush Round	2 A	-20 C	70 °C	Off-Mom	Power Symbol	16 mm	Panel Mount Front	200000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	Silver	36 VDC	Solder Lug	Anti-Vandal Illuminated	Blue LED	12 VDC
TE Connectivity Raychem Cable Protection AV1610P112R04	Button Flush Round	2 A	-20 C	70 °C	Off-Mom	Power Symbol	16 mm	Panel Mount Front	200000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	Silver	36 VDC	Solder Lug	Anti-Vandal Illuminated	LED White	12 VDC
TE Connectivity Raychem Cable Protection AV1610P124R04	Button Flush Round	2 A	-20 C	70 °C	Off-Mom	Power Symbol	16 mm	Panel Mount Front	200000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	Silver	36 VDC	Solder Lug	Anti-Vandal Illuminated	LED White	24 V
TE Connectivity Raychem Cable Protection AV1610R112R04	Button Flush Round	2 A	-20 C	70 °C	Off-Mom	No Marking	16 mm	Panel Mount Front	200000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	Silver	36 VDC	Solder Lug	Anti-Vandal Illuminated	LED White	12 VDC	Fixed LED Ring
TE Connectivity Raychem Cable Protection AV1610P612R04	Button Flush Round	2 A	-20 C	70 °C	Off-Mom	Power Symbol	16 mm	Panel Mount Front	200000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	Silver	36 VDC	Solder Lug	Anti-Vandal Illuminated	Green LED	12 VDC
TE Connectivity Raychem Cable Protection AV1610P324R04	Button Flush Round	2 A	-20 C	70 °C	Off-Mom	Power Symbol	16 mm	Panel Mount Front	200000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	1000000 Cycles	Silver	36 VDC	Solder Lug	Anti-Vandal Illuminated	LED Red	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.83
		10	$ 12.49
		25	$ 11.89
		40	$ 11.29
		100	$ 10.89
		300	$ 10.22
		500	$ 9.35
		1000	$ 8.27

Description

General part information

ALCOSWITCH AV16 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
