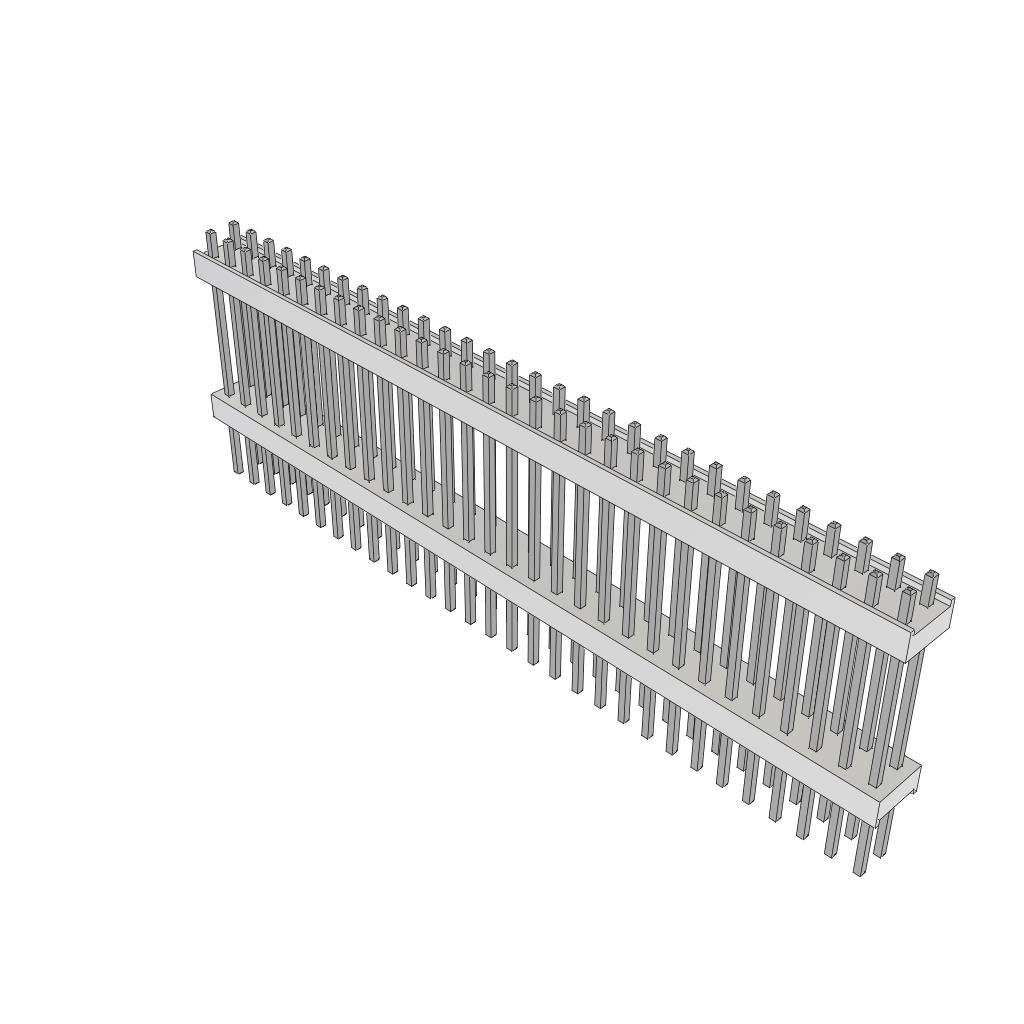

HW-30-12-T-D-690-258

Active

Samtec Inc.

CONN BOARD STACKER HDR 60 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BOARD STACKER HDR 60 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Color	Length - Tail	Length - Tail	Number of Positions	Contact Finish - Post (Mating)	Termination	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HW-30-12-T-D-690-258	2.54 mm	0.1 in	2	1.03 in	26.162 mm	0.1 in	2.54 mm	Black	6.553 mm	0.258 in	60	Tin	Solder	Through Hole	0.082 in	2.083 mm	17.526 mm	0.69 in
Samtec Inc. HW-30-12-S-D-735-SM	2.54 mm	0.1 in	2	0.965 in	24.511 mm	0.1 in	2.54 mm	Black			60	Gold	Solder	Surface Mount	0.23 in	5.842 mm	18.669 mm	0.735 in	30 µin	0.76 µm
Samtec Inc. HW-30-12-S-D-435-160-LL	2.54 mm	0.1 in	2	1.03 in	26.162 mm	0.1 in	2.54 mm	Black	4.064 mm	0.16 in	60	Gold	Kinked Pin Solder	Through Hole	0.435 in	11.049 mm			30 µin	0.76 µm
Samtec Inc. HW-30-12-F-D-745-SM	2.54 mm	0.1 in	2	0.965 in	24.511 mm	0.1 in	2.54 mm	Black			60	Gold	Solder	Surface Mount	0.22 in	5.588 mm	18.923 mm	0.745 in	3 Áin	0.076 Ám
Samtec Inc. HW-30-12-T-D-570-200	2.54 mm	0.1 in	2	1.03 in	26.162 mm	0.1 in	2.54 mm	Black	5.08 mm	0.2 in	60	Tin	Solder	Through Hole	0.26 in	6.604 mm	14.478 mm	0.57 in
Samtec Inc. HW-30-12-S-D-710-SM-A	2.54 mm	0.1 in	2	0.965 in	24.511 mm	0.1 in	2.54 mm	Black			60	Gold	Solder	Surface Mount	0.255 in	6.477 mm			30 µin	0.76 µm	18.034 mm	0.71 in
