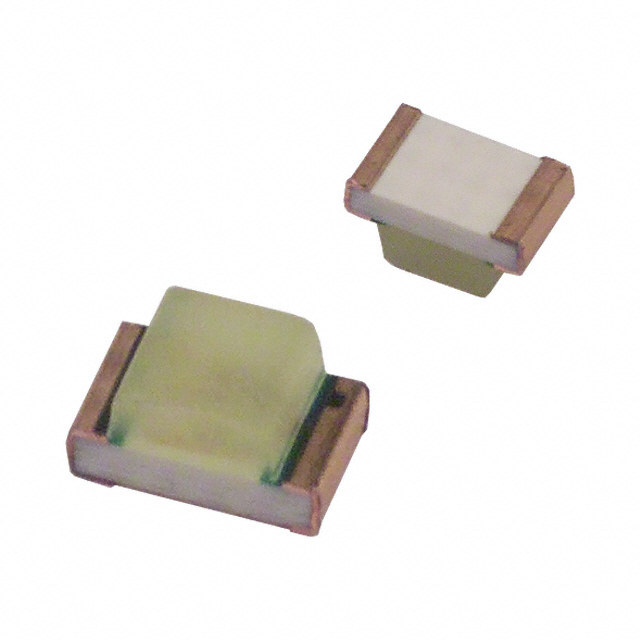

LTW-170TK
ActiveDiodes Inc
LED WHITE 0805 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTW-170TK
ActiveDiodes Inc
LED WHITE 0805 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTW-170TK |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 281 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.33 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 9000 | $ 0.15 | |||
| 15000 | $ 0.14 | |||
| 21000 | $ 0.14 | |||
| 30000 | $ 0.14 | |||
| 75000 | $ 0.13 | |||
Description
General part information
LTW-170 Series
White LED Indication - Discrete 3.3V 0805 (2012 Metric)
