8225-6003

Active

3M (TC)

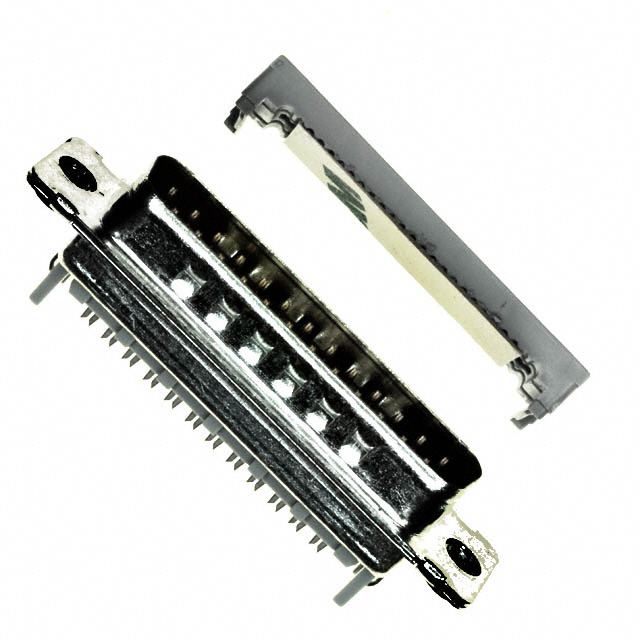

CONN D-SUB M 25 POS 1.27MM IDT RA PANEL MOUNT 25 TERMINAL 1 PORT BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

8225-6003

Active

3M (TC)

CONN D-SUB M 25 POS 1.27MM IDT RA PANEL MOUNT 25 TERMINAL 1 PORT BOX

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8225-6003

Color	Gray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents, Feed Through
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable

8225 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Material	Contact Type	Connector Style	Color	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Finish
3M (TC) 8225-6009	B DB	3	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	IDC Ribbon Cable	105 ░C	-55 °C	UL94 V-0	Copper Alloy	Signal	D-Sub	Gray	Male Pins Plug	2	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	Gold
3M (TC) 8225-6003	B DB	3	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	IDC Ribbon Cable	105 ░C	-55 °C	UL94 V-0	Copper Alloy	Signal	D-Sub	Gray	Male Pins Plug	2	0.76 Ám	30 Áin	Housing/Shell (4-40)	Gold
3M (TC) 8225-8003	B DB	3	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	IDC Ribbon Cable	105 ░C	-55 °C	UL94 V-0	Copper Alloy	Signal	D-Sub	Gray	Male Pins Plug	2	0.76 Ám	30 Áin	Housing/Shell (4-40)	Gold
3M (TC) 8225-8009	B DB	3	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	IDC Ribbon Cable	105 ░C	-55 °C	UL94 V-0	Copper Alloy	Signal	D-Sub	Gray	Male Pins Plug	2	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	Gold
3M (TC) 8225-6000	B DB	3	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	IDC Ribbon Cable	105 ░C	-55 °C	UL94 V-0	Copper Alloy	Signal	D-Sub	Gray	Male Pins Plug	2	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.21
		10	$ 9.94
		25	$ 9.55
		40	$ 9.17
		100	$ 8.66
		300	$ 7.90
		500	$ 7.39
		1000	$ 6.78

Description

General part information

8225 Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet
