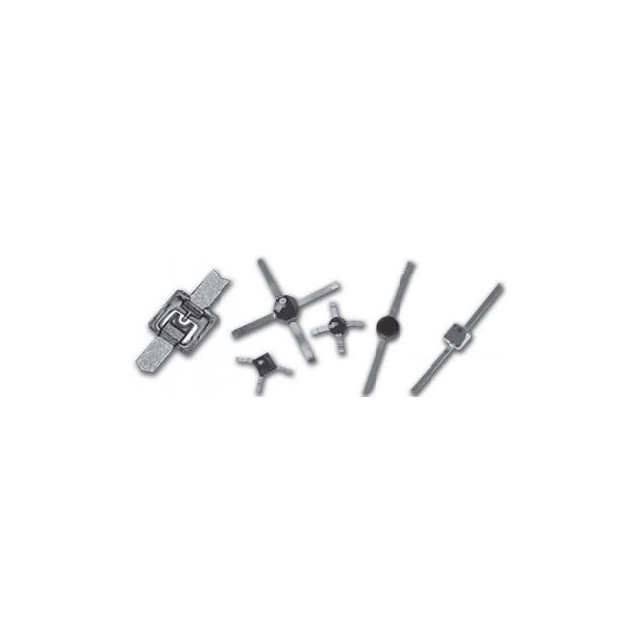

MSS30-248-B20

Active

MACOM Technology Solutions

RF DIODE SCHOTTKY 2V 100MW B20

Search across all available documentation for this part.

Active

MACOM Technology Solutions

RF DIODE SCHOTTKY 2V 100MW B20

Technical Specifications

Parameters and characteristics for this part

Specification	MSS30-248-B20

Capacitance @ Vr, F	0.15 pF
Current - Max [Max]	50 mA
Diode Type	Schottky - 1 Pair Series Connection
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Package / Case	B20
Power Dissipation (Max) [Max]	100 mW
Resistance @ If, F	7 Ohm
Supplier Device Package	B20
Voltage - Peak Reverse (Max) [Max]	2 V

Part	Capacitance @ Vr, F	Voltage - Peak Reverse (Max) [Max]	Diode Type	Package / Case	Power Dissipation (Max) [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Max [Max]	Resistance @ If, F
MACOM Technology Solutions MSS30-B53-H40	0.46 pF	2 V	Schottky - 1 Bridge	H40
MACOM Technology Solutions MSS30-B53-E45	0.33 pF	3 V	Schottky - 1 Bridge	E45	100 mW	E45	-65 ░C	150 °C	50 mA
MACOM Technology Solutions MSS30-B46-B45	0.13 pF	3 V	Schottky - 1 Bridge	E45	100 mW	E45	-65 ░C	150 °C	50 mA
MACOM Technology Solutions MSS30-248-B20	0.15 pF	2 V	Schottky - 1 Pair Series Connection	B20	100 mW	B20	-65 ░C	150 °C	50 mA	7 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Diode Schottky - 1 Pair Series Connection 2V 50 mA 100 mW B20
