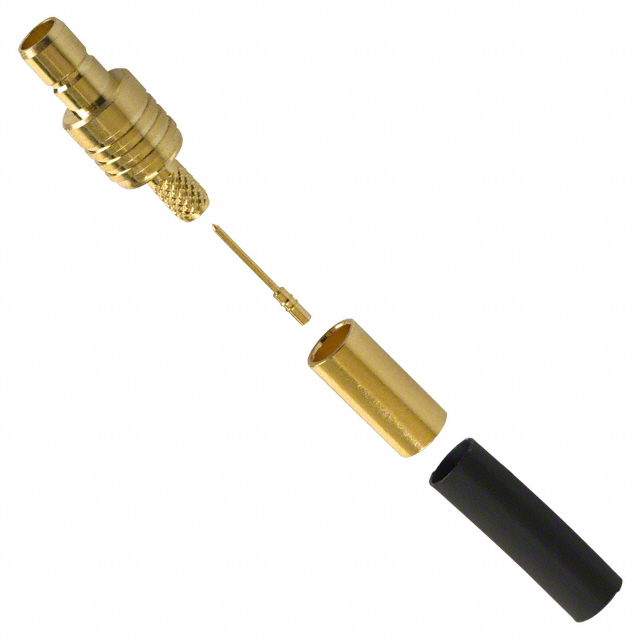

142190-75

Active

Amphenol RF

RF / COAXIAL CONNECTOR, SMB COAXIAL, STRAIGHT JACK, CRIMP, 75 OHM, RG179, BERYLLIUM COPPER

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, SMB COAXIAL, STRAIGHT JACK, CRIMP, 75 OHM, RG179, BERYLLIUM COPPER

Technical Specifications

Parameters and characteristics for this part

Specification	142190-75

Body Finish	Gold
Body Material	Brass
Cable Group	RG-179 Double Braid
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Body Material	Impedance	Center Contact Plating	Shield Termination	Dielectric Material	Number of Ports	Center Contact Material	Insertion Loss	Housing Color	Mating Cycles	Fastening Type	Cable Group	Body Finish
Amphenol RF 142190-75	Solder	-65 ░C	165 °C	Jack Male Pin	Free Hanging (In-Line)	Brass	75 Ohms	Gold	Crimp	Polytetrafluoroethylene (PTFE)	1	Brass	0.3 dB	Gold	500	Snap-On	RG-179 Double Braid	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Mini Connector Jack, Male Pin 75 Ohms Free Hanging (In-Line) Solder
