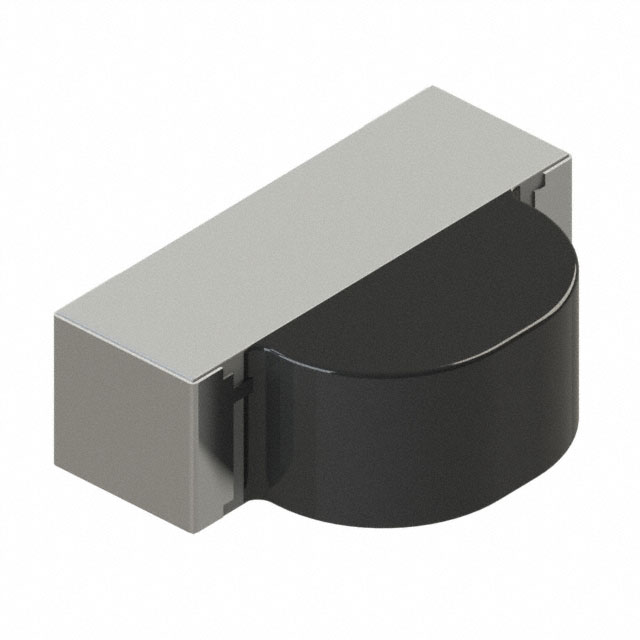

IN-S32HSNPD

Active

Inolux

SENSOR PHOTODIODE 940NM 2SMD

Search across all available documentation for this part.

Active

Inolux

SENSOR PHOTODIODE 940NM 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IN-S32HSNPD	IN-S32 Series

Color - Enhanced	Red, Infrared (NIR)	Red, Infrared (NIR)
Current - Dark (Typ) [Max]	10 nA	10 nA
Mounting Type	Surface Mount, Right Angle	Surface Mount, Surface Mount, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	-	Analog
Package / Case	2-SMD, No Lead	4-SMD, No Lead, 2-SMD, No Lead
Proximity Detection	-	False
Response Time	6 µs	6 µs
Spectral Range [Max]	1100 nm	1100 nm
Spectral Range [Min]	700 nm	700 nm
Type	-	Ambient
Voltage - DC Reverse (Vr) (Max) [Max]	32 V	32 V
Wavelength	940 nm	630 - 940 nm

SENSOR OPT 630NM AMBIENT 4 SMD

Part	Type	Output Type	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Proximity Detection	Wavelength	Spectral Range [Min]	Spectral Range [Max]	Current - Dark (Typ) [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Color - Enhanced	Response Time
Inolux IN-S32GTLS	Ambient	Analog	4-SMD, No Lead	Surface Mount	85 °C	-40 °C		630 nm
Inolux IN-S32HSNPD			2-SMD, No Lead	Surface Mount, Right Angle	85 °C	-40 °C		940 nm	700 nm	1100 nm	10 nA	32 V	Infrared (NIR), Red	6 µs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 940nm 6µs 2-SMD, No Lead
