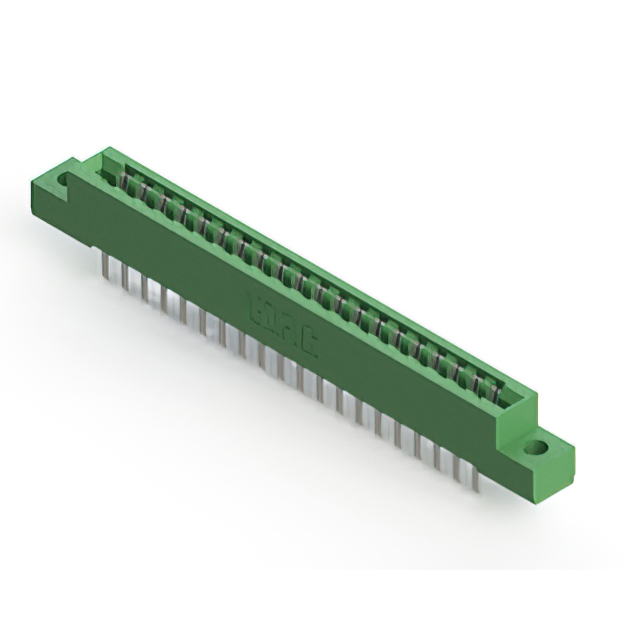

307-040-459-202
ActiveEDAC Inc.
3.96MM RIGHT-ANGLE 40P -40℃~+105℃ PUSH-PULL,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-040-459-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-040 Series
...
| Part | Contact Material | Flange Feature | Color | Number of Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Termination Rows | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Pitch [x] | Pitch [x] | Contact Finish | Mounting Type | Material - Insulation | Gender | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | 20 | 20 | 20 | 40 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Gold | Board Edge Straddle Mount | Polyester Thermoplastic | Female | ||||
EDAC Inc. | Copper Alloy | Flush Mount Top Opening Unthreaded | Green | 2 | 80 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Gold | Through Hole Right Angle | Polyester Thermoplastic | Female | 40 | 3.96 mm | 0.156 in | ||||
EDAC Inc. | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | 20 | 20 | 20 | 40 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 2 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Gold | Through Hole | Polyester Thermoplastic | Female | Card Guides | |||
EDAC Inc. | Copper Alloy | Flush Mount Top Opening Unthreaded | Green | 2 | 20 | 20 | 20 | 40 | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Tin | Through Hole Right Angle | Polyester Thermoplastic | Female | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Copper Alloy | Floating Bobbin Flush Mount | Green | 2 | 20 | 20 | 20 | 40 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Gold | Through Hole Right Angle | Polyester Thermoplastic | Female | 2.95 mm | 0.116 in | ||
EDAC Inc. | Copper Alloy | Green | 2 | 80 | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Tin | Through Hole Right Angle | Polyester Thermoplastic | Female | 40 | |||||||||
EDAC Inc. | Copper Alloy | Floating Bobbin Flush Mount | Green | 2 | 80 | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Tin | Through Hole Right Angle | Polyester Thermoplastic | Female | 40 | 2.95 mm | 0.116 in | ||||||
EDAC Inc. | Copper Alloy | Flush Mount Side Opening Unthreaded | Green | 2 | 80 | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Tin | Through Hole Right Angle | Polyester Thermoplastic | Female | 40 | 3.25 mm | 0.128 " | ||||||
EDAC Inc. | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | 20 | 20 | 20 | 40 | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 2 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Tin | Through Hole | Polyester Thermoplastic | Female | Card Guides | |||||
EDAC Inc. | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Green | 2 | 20 | 20 | 20 | 40 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | -40 °C | 105 ░C | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Gold | Board Edge Straddle Mount | Polyester Thermoplastic | Female | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-040 Series
40 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
