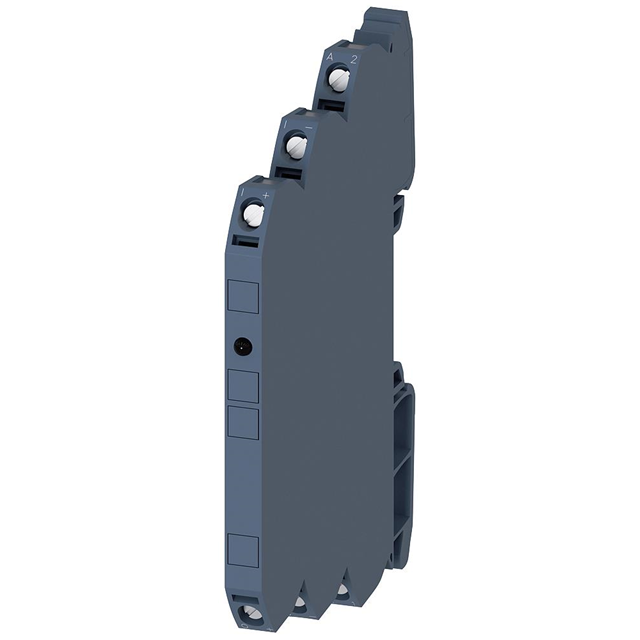

Specification	3RS70051KE00

Input Current Range (Maximum)	20 mA
Input Current Range (Minimum)	0 mA
Input Resistance (Additional)	100 Ohm, 330000 Ohm
Input Type	Voltage, Resistance, Current
Input Voltage Range (Maximum)	10 V
Input Voltage Range (Minimum)	0 V
Isolation	50 V
Mounting Type	DIN Rail
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Termination Style	Screw Terminal
Type	Isolation Amplifier
Voltage - Supply	24 VDC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Option 2)	24 DC

3RS7005 Series

Part	Output Type	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Termination Style	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Input Resistance (Additional)	Isolation	Input Voltage Range (Maximum)	Input Current Range (Maximum)	Type	Output Voltage Range (Max)	Output Current Range (Max)	Output Current Range (Min)	Output Voltage Range (Min)	Input Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Siemens 3RS70051FE00	Current Voltage	-25 °C	60 °C	DIN Rail	Screw Terminal	24 VAC	24 VDC	24 DC	100 Ohm 330000 Ohm	50 V	10 V	20 mA	Isolation Amplifier	10 VDC	20 mA	0 mA	0 VDC	Current Resistance Voltage
Siemens 3RS70051FW00	Current Voltage	-25 °C	60 °C	DIN Rail	Screw Terminal				100 Ohm 330000 Ohm	300 V	10 V	20 mA	Signal Conditioner	10 VDC	20 mA	0 mA	0 VDC	Current Resistance Voltage	240 VAC	24 VAC
Siemens 3RS70052FE00	Current Voltage	-25 °C	60 °C	DIN Rail	Spring Terminal	24 VAC	24 VDC	24 DC	100 Ohm 330000 Ohm	50 V	10 V	20 mA	Isolation Amplifier	10 VDC	20 mA	0 mA	0 VDC	Current Resistance Voltage
Siemens 3RS70052FW00	Current Voltage	-25 °C	60 °C	DIN Rail	Spring Terminal				100 Ohm 330000 Ohm	300 V	10 V	20 mA	Signal Conditioner	10 VDC	20 mA	0 mA	0 VDC	Current Resistance Voltage	240 VAC	24 VAC
Siemens 3RS70052KE00		-25 °C	60 °C	DIN Rail	Spring Terminal	24 VAC	24 VDC	24 DC	100 Ohm 330000 Ohm	50 V	10 V	20 mA	Isolation Amplifier					Current Resistance Voltage
Siemens 3RS70051KE00		-25 °C	60 °C	DIN Rail	Screw Terminal	24 VAC	24 VDC	24 DC	100 Ohm 330000 Ohm	50 V	10 V	20 mA	Isolation Amplifier					Current Resistance Voltage
Siemens 3RS70051KW00		-25 °C	60 °C	DIN Rail	Screw Terminal				100 Ohm 330000 Ohm	300 V	10 V	20 mA	Signal Conditioner					Current Resistance Voltage	240 VAC	24 VAC
Siemens 3RS70052KW00		-25 °C	60 °C	DIN Rail	Spring Terminal				100 Ohm 330000 Ohm	300 V	10 V	20 mA	Signal Conditioner					Current Resistance Voltage	240 VAC	24 VAC
