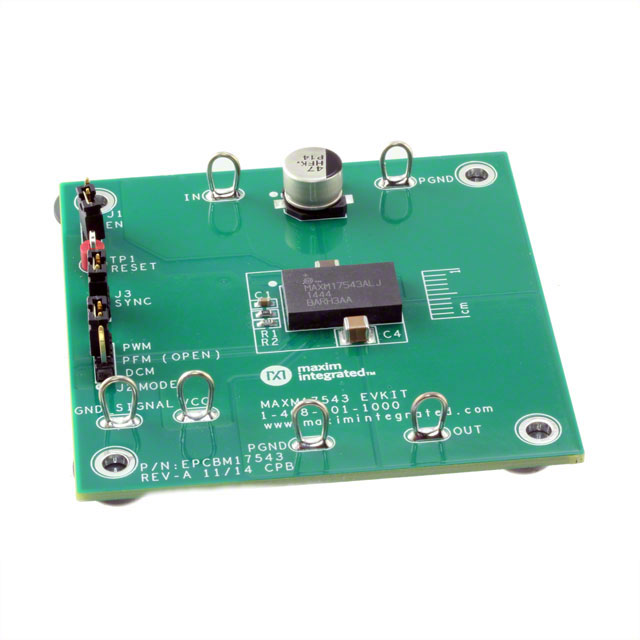

MAXM17543EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17543
Deep-Dive with AI
Search across all available documentation for this part.
MAXM17543EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17543
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17543EVKIT# | MAXM17543 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 2.5 A | 2.5 A |
| Current - Output (Max) | - | 2.5 A |
| Features | - | OTP, UVLO, OCP |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 29-SMD Module, Exposed Pad |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 0.11 in |
| Size / Dimension | - | 0.59 in |
| Size / Dimension | - | 9 mm |
| Size / Dimension | - | 2.8 mm |
| Size / Dimension | - | 0.35 " |
| Supplied Contents | Board(s) | Board(s) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17543 | MAXM17543 |
| Voltage - Input (Max) | - | 42 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 42 V | 42 V |
| Voltage - Input [Min] | 4.5 V | 4.5 V |
| Voltage - Output [Max] | 12 V | 12 V |
| Voltage - Output [Min] | 0.9 V | 0.9 V |
| Voltage - Output 1 | - | 0.9 V |
| Voltage - Output 1 | - | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.05 | |
MAXM17543 Series
EVAL KIT FOR MAXM17543
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Outputs and Type | Outputs and Type | Current - Output | Main Purpose | Regulator Topology | Board Type | Utilized IC / Part | Supplied Contents | Voltage - Output [Min] | Voltage - Output [Max] | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Features | Mounting Type | Number of Outputs | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Applications | Type | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17543EVKIT# | 42 V | 4.5 V | Non-Isolated | 1 | 2.5 A | DC/DC, Step Down | Buck | Fully Populated | MAXM17543 | Board(s) | 0.9 V | 12 V | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17543ALJ+T | 2.5 A | 15 mm | 0.11 in | 0.59 in | 9 mm | 2.8 mm | 0.35 " | 29-SMD Module, Exposed Pad | OCP, OTP, UVLO | Surface Mount | 1 | 42 V | 125 °C | -40 °C | 0.9 V | 12 V | ITE (Commercial) | Non-Isolated PoL Module | 4.5 V | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17543ALJ+ | 2.5 A | 15 mm | 0.11 in | 0.59 in | 9 mm | 2.8 mm | 0.35 " | 29-SMD Module, Exposed Pad | OCP, OTP, UVLO | Surface Mount | 1 | 42 V | 125 °C | -40 °C | 0.9 V | 12 V | ITE (Commercial) | Non-Isolated PoL Module | 4.5 V |
Description
General part information
MAXM17543 Series
MAXM17543 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
