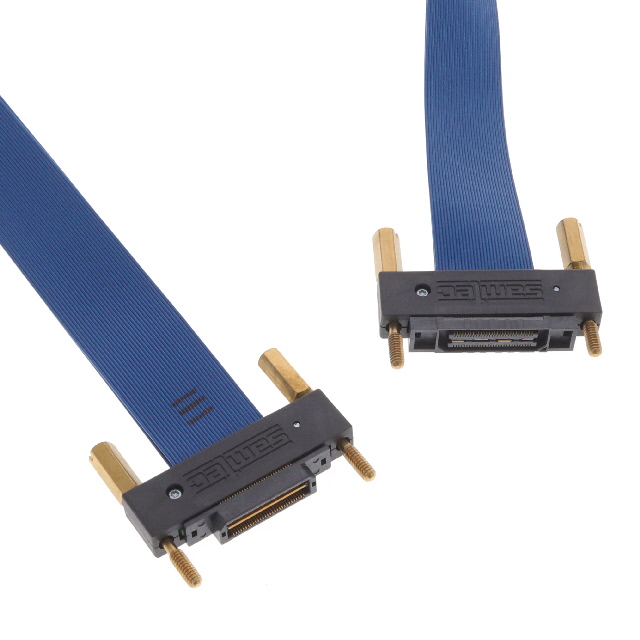

HQCD-030-40.00-TEU-SEU-1-B

Active

Samtec Inc.

CBL ASSM M-F 60POS 40" HDR

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSM M-F 60POS 40" HDR

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Number of Rows	Number of Positions	Color	Connector Type	Contact Finish	Cable Termination	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Length	Length	Length	Length	Length [x]	Length [x]
Samtec Inc. HQCD-030-12.00-TEU-SEU-1-B	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm	1 ft	304.8 mm
Samtec Inc. HQCD-030-06.00-SED-TED-1	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm		152.4 mm	6 "	0.5 '
Samtec Inc. HQCD-030-06.00-TEU-SEU-1-B	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm		152.4 mm	6 "	0.5 '
Samtec Inc. HQCD-030-24.00-TEU-SEU-1-B	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm					2 '	609.6 mm
Samtec Inc. HQCD-030-40.00-TED-SED-1-B	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm					3.33 '	1.02 m
Samtec Inc. HQCD-030-12.00-TED-SED-1-B	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm	1 ft	304.8 mm
Samtec Inc. HQCD-030-40.00-TEU-SEU-1-B	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm					3.33 '	1.02 m
Samtec Inc. HQCD-030-02.00-TEU-SEU-1-B	Shielded	2	60	Blue Ribbon	Card Edge to Card Edge	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm	0.167 '	50.8 mm	2 "
Samtec Inc. HQCD-030-06.00-TTR-STR-1-B	Shielded	2	60	Blue Ribbon	Socket to Plug	Gold	IDC	0.02 in	0.5 mm	0.01 in	0.25 mm		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Cable Assembly Rectangular Card Edge to Card Edge 3.33' (1.02m)
