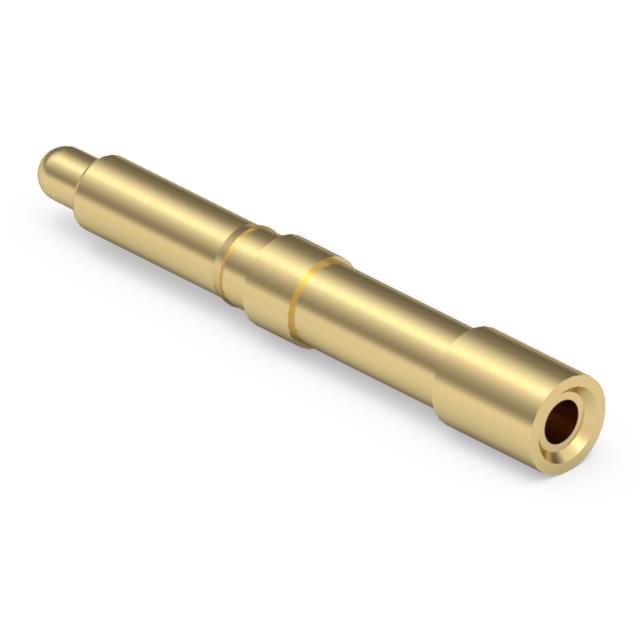

0959-0-54-20-75-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED IN-LINE
Deep-Dive with AI
Search across all available documentation for this part.
0959-0-54-20-75-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED IN-LINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0959-0-54-20-75-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins), Receptacle Adapter |
| Current Rating (Amps) | 5.2 A |
| Features [Max] [diameter] | 0.032 in |
| Features [Max] [diameter] | 0.81 mm |
| Features [Min] [diameter] | 0.02 in |
| Features [Min] [diameter] | 0.51 mm |
| Mating Cycles | 1000000 |
| Maximum Working Height | 13.54 mm |
| Maximum Working Height [Max] | 0.533 in |
| Minimum Working Height [Min] | 0.478 in |
| Minimum Working Height [Min] | 12.14 mm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Force - Initial | 10 gf |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 2.54 mm |
| Pad Layout Dimension [diameter] | 0.1 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
| Recommended Working Height | 6.23 mm |
| Recommended Working Height | 0.245 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.54 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.29 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.86 | |||
| 3000 | $ 0.80 | |||
Description
General part information
0959-0 Series
Contact Spring Free Hanging (In-Line)
Documents
Technical documentation and resources
No documents available
