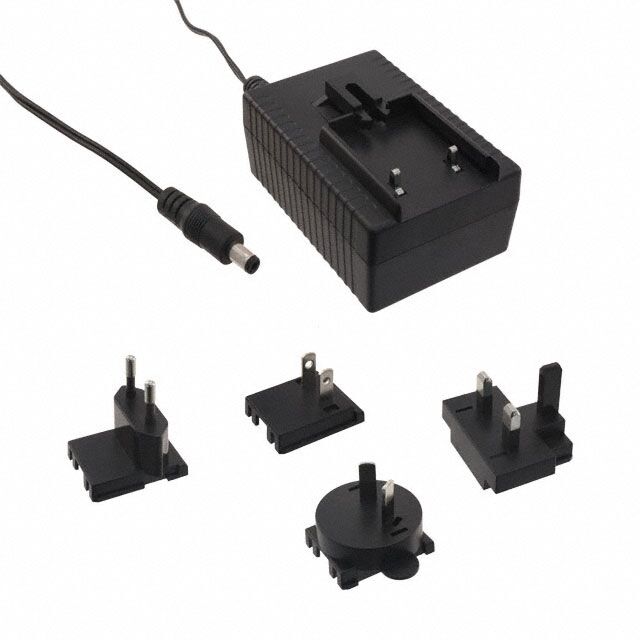

KTPS36-120300MP-VI-P2-NA

Active

Volgen + Furuno

AC/DC WALL MOUNT ADAPTER 12V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KTPS36-120300MP-VI-P2-NA

Active

Volgen + Furuno

AC/DC WALL MOUNT ADAPTER 12V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KTPS36-120300MP-VI-P2-NA

Applications	ITE (Commercial)
Approval Agency	RCM, UL, cUL, CB, CE, GS, PSE
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Multi-Blade, Fixed Blade
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	79 mm
Size / Dimension [x]	3.11 in
Size / Dimension [y]	1.38 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	2.6 in
Size / Dimension [z]	66 mm
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	12 V
Weight	160 g
Weight	0.35 lb

KTPS36 Series

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Input Type	Form	Approval Agency	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Input Connector	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Region Utilized	Polarization	Voltage - Output	Standard Number	Weight	Weight
Volgen + Furuno KTPS36-150240WA-VI-P1	2.4 A	40 °C	Fixed Blade	Wall Mount (Class II)	cUL UL	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	NEMA 1-15P	Level VI	240 VAC	100 VAC	1.5 m	59 in	North America	Positive Center	15 VDC
Volgen + Furuno KTPS36-050500WA-VI-P1	5 A	40 °C	Fixed Blade	Wall Mount (Class II)	IEC	25 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	NEMA 1-15P	Level VI	240 VAC	100 VAC	1.5 m	59 in	North America	Positive Center	5 V	62368-1
Volgen + Furuno KTPS36-150240DT-2P-VI-P12	2.4 A	40 °C	Cord	Desktop (Class II)	CB CE cUL GS PSE UL	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	ITE (Commercial)	IEC 320-C6	Level VI	240 VAC	100 VAC	1.5 m	59 in	International	Positive Center	15 VDC
Volgen + Furuno KTPS36-0940DT-3P-VI-C-P1	4 A	40 °C	Cord	Desktop (Class I)	IEC	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	53 mm	115 mm	4.53 "	1.5 "	2.09 "	38 mm	ITE (Commercial)	IEC 320-C6	Level VI	240 VAC	100 VAC	1.5 m	59 in	International	Positive Center	9 V	62368-1
Volgen + Furuno KTPS36-480075MP-VI-P1	750 mA	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	CB CE cUL GS PSE RCM UL	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	48 V
Volgen + Furuno KTPS36-090334DT-2P-VI-P1	3.34 A	40 °C	Cord	Desktop (Class II)	IEC	30 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	ITE (Commercial)	IEC 320-C6	Level VI	240 VAC	100 VAC	1.5 m	59 in	International	Positive Center	9 V	62368-1
Volgen + Furuno KTPS36-120300MP-VI-P2-NA	3 A	40 °C	Fixed Blade Multi-Blade	Wall Mount (Class II)	CB CE cUL GS PSE RCM UL	36 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	NEMA 1-15P	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	12 V		160 g	0.35 lb
Volgen + Furuno KTPS36-120300MP-VI-P1	3 A	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	IEC	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	12 V	62368-1
Volgen + Furuno KTPS36-050500MP-VI-P2R	5 A	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	IEC	25 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	5 V	62368-1
Volgen + Furuno KTPS36-240150MP-VI-P1	1.5 A	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	IEC	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	24 V	62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 12.13

Description

General part information

KTPS36 Series

12V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
