336303-12-0100

Amphenol RF

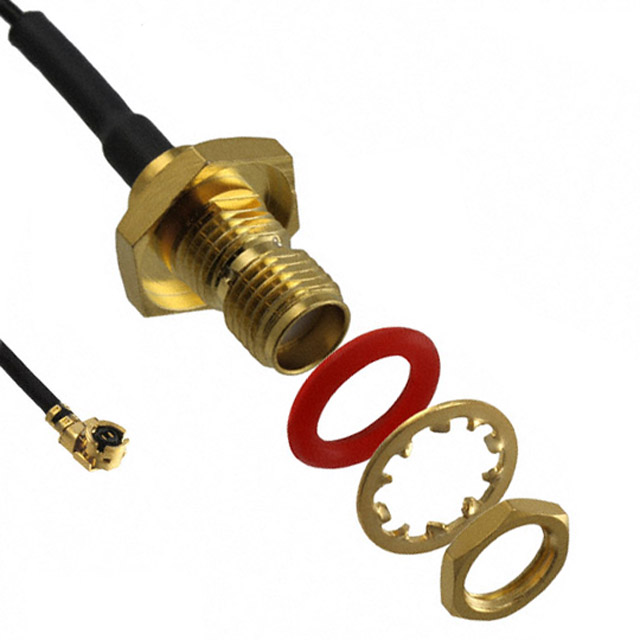

RF / COAXIAL CABLE ASSEMBLY, 90° AMC PLUG TO SMA BULKHEAD JACK, 1.13MM, 50 OHM, 4 ", 102 MM, BLACK

Search across all available documentation for this part.

Amphenol RF

RF / COAXIAL CABLE ASSEMBLY, 90° AMC PLUG TO SMA BULKHEAD JACK, 1.13MM, 50 OHM, 4 ", 102 MM, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	336303-12-0100

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Length [x]	0.1 m
Length [x]	3.937 in
Overall Impedance	50 Ohms
Style	U.FL (UMCC), AMC to SMA

Part	Style	1st Connector Mounting Feature	Cable Type	2nd Connector Mounting Type	Length [x]	Length [x]	Color	Frequency - Max [Max]	Overall Impedance	2nd Connector	1st Connector Mounting Type	1st Contact Gender	2nd Contact Gender	1st Connector	Length	Length
Amphenol RF 336303-12-0050	U.FL (UMCC) AMC to SMA	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	1.969 in	50 mm	Black	6000 MHz	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	Panel Mount	Female	Female	SMA Jack
Amphenol RF 336303-13-0200	U.FL (UMCC) AMC to SMA	Bulkhead - Front Side Nut	1.32mm OD Coaxial Cable	Free Hanging (In-Line)			Black	6000 MHz	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	Panel Mount	Female	Female	SMA Jack	7.874 in	200 mm
Amphenol RF 336303-13-0300	U.FL (UMCC) AMC to SMA	Bulkhead - Front Side Nut	1.32mm OD Coaxial Cable	Free Hanging (In-Line)	11.811 in	300 mm	Black	6000 MHz	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	Panel Mount	Female	Female	SMA Jack
Amphenol RF 336303-12-0100	U.FL (UMCC) AMC to SMA	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	3.937 in	0.1 m	Black	6000 MHz	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	Panel Mount	Female	Female	SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC), AMC to SMA 1.13mm OD Coaxial Cable 3.937" (100.00mm)
