CFTPW-12
ActiveCurtis Industries

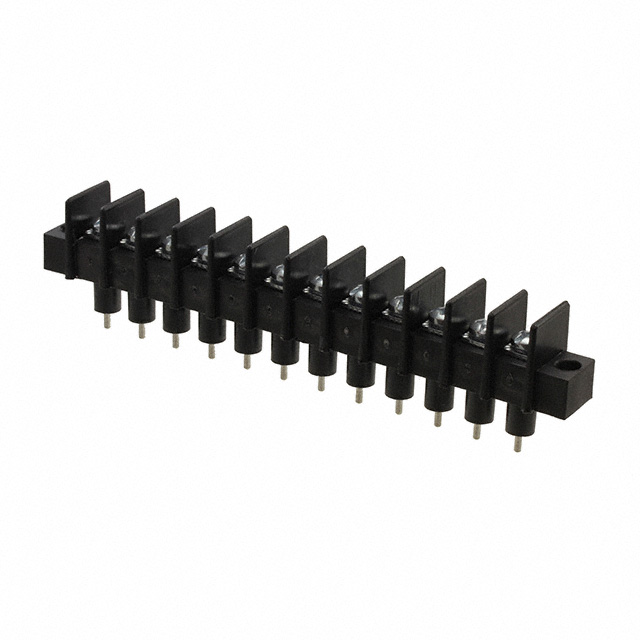

CONN BARRIER STRP 12CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFTPW-12
ActiveCurtis Industries
CONN BARRIER STRP 12CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CFTPW-12 | CFTPW Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin, Insulated | PC Pin, Insulated |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyester Thermoplastic | Polyester Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 12 | 10 - 24 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 12 | 10 - 21 |
| Operating Temperature | 140 °C | 140 °C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
CFTPW Series
CONN BARRIER STRP 24CIRC 0.375"
| Part | Material Flammability Rating | Color | Material - Insulation | Terminal Block Type | Top Termination | Operating Temperature | Bottom Termination | Current Rating (Amps) | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Barrier Type | Number of Circuits | Pitch [x] | Pitch [x] | Mounting Type | Voltage Rating | Features | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries CFTPW-24 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 24 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | |
Curtis Industries CFTPW-17 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 17 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 17 |
Curtis Industries CFTPW-12 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 12 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 12 |
Curtis Industries CFTPW-10 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 10 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 10 |
Curtis Industries CFTPW-13 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 13 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 13 |
Curtis Industries CFTPW-18 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 18 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 18 |
Curtis Industries CFTPW-19 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 19 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 19 |
Curtis Industries CFTPW-21 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 21 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 21 |
Curtis Industries CFTPW-16 | UL94 V-0 | Black | Polyester Thermoplastic | Barrier Block | Screws with Captive Plate | 140 °C | PC Pin, Insulated | 20 A | 12 AWG | 22 AWG | 1 | 2 Wall (Dual) | 16 | 9.53 mm | 0.375 in | Chassis, Panel | 300 VDC | Flange | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.15 | |
| 10 | $ 8.94 | |||
Description
General part information
CFTPW Series
12 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
