CFTPW-10

Active

Curtis Industries

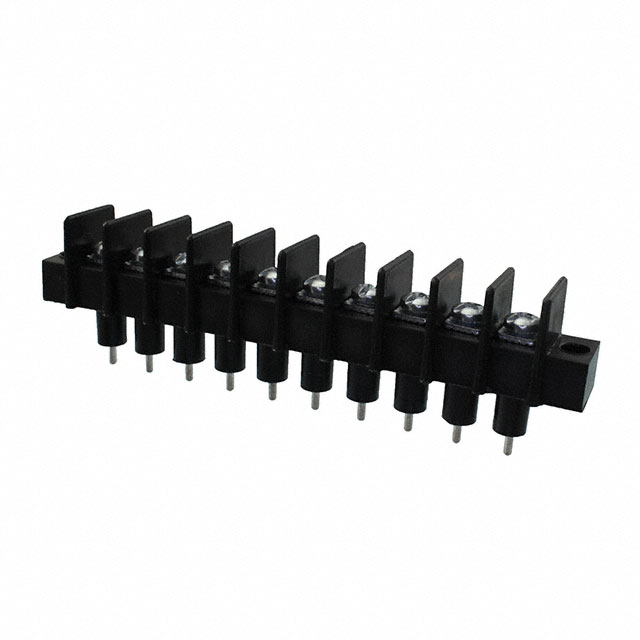

CONN BARRIER STRP 10CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFTPW-10

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.12
		10	$ 10.67
		25	$ 10.06

Description

General part information

CFTPW Series

10 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFTPW-10	CFTPW Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin, Insulated	PC Pin, Insulated
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	10	10 - 24
Number of Rows	1	1
Number of Wire Entries	10	10 - 21
Operating Temperature	140 °C	140 °C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

CFTPW Series

CONN BARRIER STRP 24CIRC 0.375"

Part	Material Flammability Rating	Color	Material - Insulation	Terminal Block Type	Top Termination	Operating Temperature	Bottom Termination	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Barrier Type	Number of Circuits	Pitch [x]	Pitch [x]	Mounting Type	Voltage Rating	Features	Number of Wire Entries
Curtis Industries CFTPW-24	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	24	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange
Curtis Industries CFTPW-17	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	17	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	17
Curtis Industries CFTPW-12	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	12	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	12
Curtis Industries CFTPW-10	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	10	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	10
Curtis Industries CFTPW-13	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	13	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	13
Curtis Industries CFTPW-18	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	18	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	18
Curtis Industries CFTPW-19	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	19	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	19
Curtis Industries CFTPW-21	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	21	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	21
Curtis Industries CFTPW-16	UL94 V-0	Black	Polyester Thermoplastic	Barrier Block	Screws with Captive Plate	140 °C	PC Pin, Insulated	20 A	12 AWG	22 AWG	1	2 Wall (Dual)	16	9.53 mm	0.375 in	Chassis, Panel	300 VDC	Flange	16
