173-009-112R141

Obsolete

NorComp Inc.

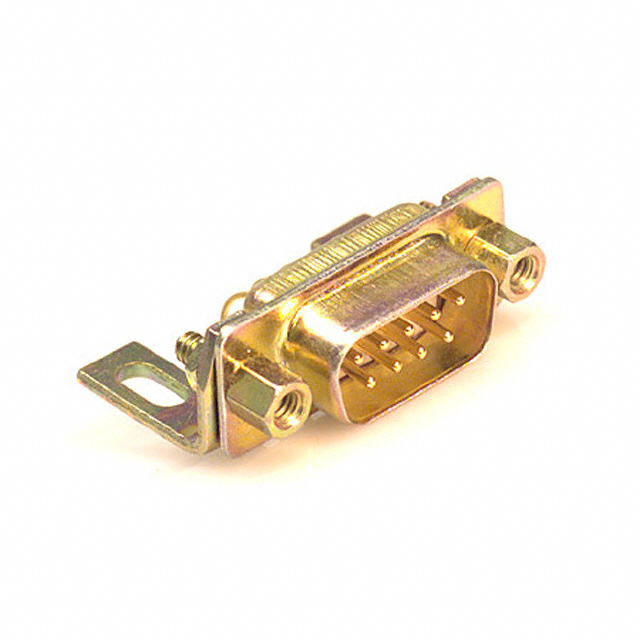

CONN D-SUB PLUG 9POS R/A SLDR

Search across all available documentation for this part.

Obsolete

NorComp Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	173-009-112R141	173-009 Series

Backset Spacing	0.283 in	0.283 in
Backset Spacing	7.2 mm	7.2 mm
Color	Beige	Beige
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	-	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents, Mounting Brackets	Grounding Indents, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	9	9
Number of Rows	2	2
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Termination	Solder	Solder

CONN D-SUB PLUG 9POS R/A SLDR

Part	Contact Finish Thickness	Flange Feature	Material Flammability Rating	Features	Color	Connector Style	Connector Type	Current Rating (Amps)	Dielectric Material	Backset Spacing	Backset Spacing	Number of Positions	Termination	Number of Rows	Contact Finish	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Material
NorComp Inc. 173-009-112R141	Flash	Female Screwlock (4-40), Mating Side	UL94 V-0	Grounding Indents, Mounting Brackets	Beige	D-Sub	Male Pins, Plug	5 A	Polybutylene Terephthalate (PBT)	0.283 in	7.2 mm	9	Solder	2	Gold	Signal	DE, E	1	Panel Mount, Right Angle, Through Hole
NorComp Inc. 173-009-212R141	Flash	Female Screwlock (4-40), Mating Side	UL94 V-0	Mounting Brackets	Beige	D-Sub	Receptacle, Female Sockets	5 A	Polybutylene Terephthalate (PBT), Polyester	0.283 in	7.2 mm	9	Solder	2	Gold	Signal	DE, E	1	Panel Mount, Right Angle, Through Hole	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position D-Sub Plug, Male Pins Connector
