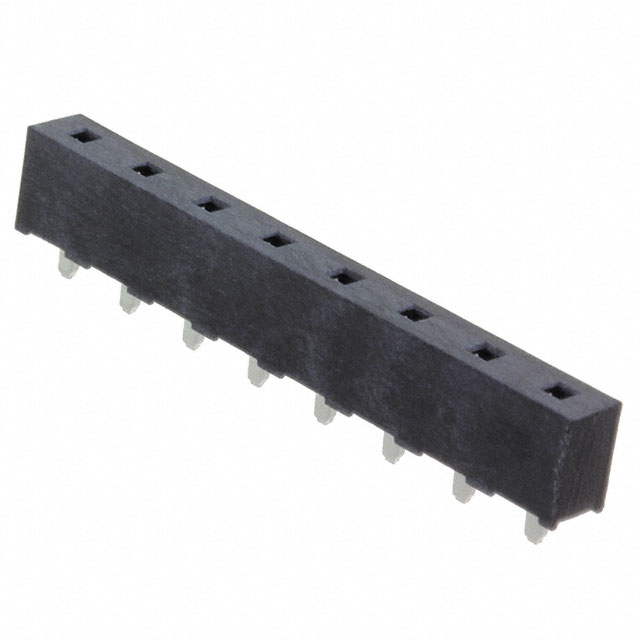

PSS-08-01-T-S
ActiveSamtec Inc.
POWER TO THE BOARD ".200"" POWER SOCKET STRIP\/
Deep-Dive with AI
Search across all available documentation for this part.
PSS-08-01-T-S
ActiveSamtec Inc.
POWER TO THE BOARD ".200"" POWER SOCKET STRIP\/
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSS-08-01-T-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PSS-08 Series
Power to the Board ".200"" Power Socket Strip\/
