81068-500203-RB

Active

3M (TC)

80000901860 81068-500203-RB=68/MHDR/RA/.062/30AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

81068-500203-RB

Active

3M (TC)

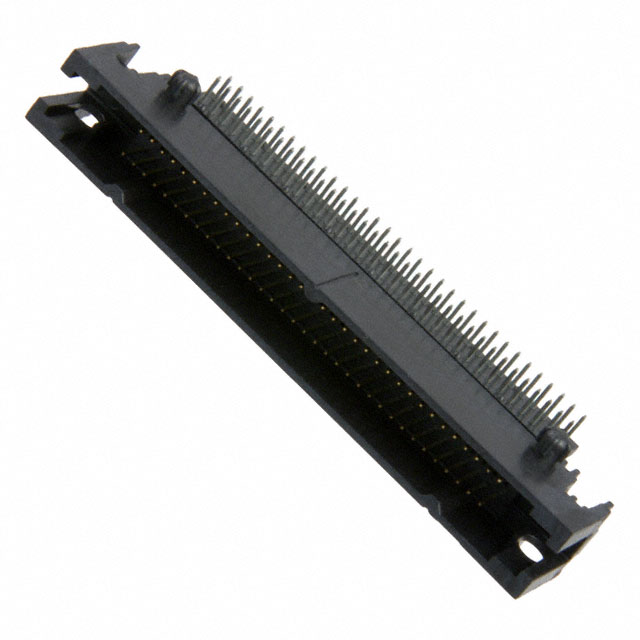

80000901860 81068-500203-RB=68/MHDR/RA/.062/30AVG/ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	81068-500203-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	0.14 in
Contact Length - Mating	3.56 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.31 in
Insulation Height	7.87 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

81068 Series

Part	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Contact Shape	Style	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Material	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post
3M (TC) 81068-660C01-RB	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Surface Mount	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)
3M (TC) 81068-660303	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Through Hole	Tin-Lead	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)	0.11 in	2.79 mm
3M (TC) 81068-660C01-RB-WG	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Surface Mount	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)
3M (TC) 81068-660203-RB	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Through Hole	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)		2.34 mm	0.092 in
3M (TC) 81068-560203-RB	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.31 in	7.87 mm	68	Gold	Through Hole Right Angle	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)		2.29 mm	0.09 "
3M (TC) 81068-650301	Latch Lock/Eject Hooks Short	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Through Hole	Tin-Lead	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)	0.11 in	2.79 mm
3M (TC) 81068-650301-RB	Latch Lock/Eject Hooks Short	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Through Hole	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy			All	Liquid Crystal Polymer (LCP)	0.11 in	2.79 mm		0.265 in	6.73 mm	Board Guide
3M (TC) 81068-500203-RB	Push-Pull	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.31 in	7.87 mm	68	Gold	Through Hole Right Angle	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)		2.29 mm	0.09 "			Board Guide	2.54 µm	100 µin
3M (TC) 81068-660C04-RB	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Surface Mount	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)
3M (TC) 81068-660C07-RB	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	105 ░C	-55 °C	Header	UL94 V-0	0.405 in	10.29 mm	68	Gold	Surface Mount	Tin	Square	Board to Cable/Wire	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	Black	Male Pin	2	0.05 in	1.27 mm	Copper Alloy	0.14 in	3.56 mm	All	Liquid Crystal Polymer (LCP)						Retention Clips

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.48
		10	$ 14.01
		100	$ 12.93
Newark	Each	100	$ 18.50
		250	$ 17.88

Description

General part information

81068 Series

Connector Header Through Hole, Right Angle 68 position 0.050" (1.27mm)
