Technical Specifications
Parameters and characteristics for this part
| Specification | STA8089FG |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | General Purpose |
| Data Interface | UART, SPI, I2C |
| Data Rate (Max) [Max] | 12 Mbps |
| Frequency | 1.575 GHz, 1.601 GHz, 1.561 GHz |
| Memory Size | 512 kB, 256 kB |
| Modulation or Protocol | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

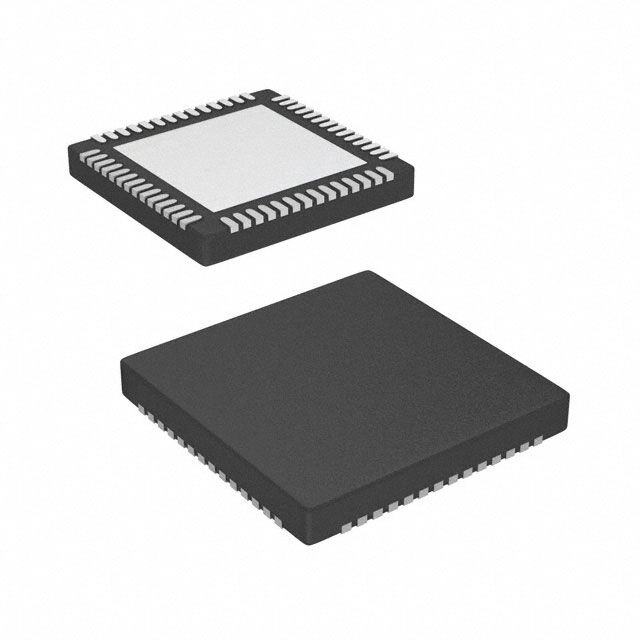

| Package / Case | 56-VFQFN Exposed Pad |
| Sensitivity | -162 dBm |
| Supplier Device Package | 56-VFQFPN (7x7) |
| Voltage - Supply [Max] | 1.32 V |
| Voltage - Supply [Min] | 1.08 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STA8089FGA Series
STA8089GA belongs to Teseo III family products.
STA8089GA is a single die standalone positioning receiver IC working on multiple constellations (GPS/Galileo/GLONASS/BeiDou/QZSS).
STA8089GA is compliant with ST Automotive Grade qualification which includes in addition to AEC-Q100 requirements a set of production flow methodologies targeting zero defect per million.
