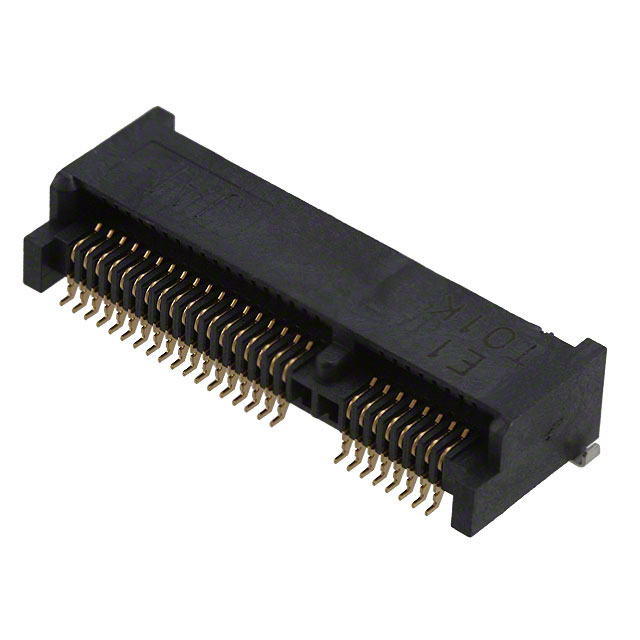

MM60-52B1-G1-R850
ActiveJAE Electronics
CONN PCI EXP MIN FML 52POS 0.031
Deep-Dive with AI
Search across all available documentation for this part.
MM60-52B1-G1-R850
ActiveJAE Electronics
CONN PCI EXP MIN FML 52POS 0.031
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MM60-52B1-G1-R850 |
|---|---|
| Card Thickness | 0.039 in |
| Card Thickness | 1 mm |
| Card Type | PCI Express Mini Card |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.53 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.07 | |||
| Digi-Reel® | 1 | $ 1.53 | ||
| 10 | $ 1.33 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.07 | |||
| Tape & Reel (TR) | 850 | $ 0.96 | ||
| 1700 | $ 0.82 | |||
| 2550 | $ 0.79 | |||
| 5950 | $ 0.75 | |||
| 8500 | $ 0.73 | |||
Description
General part information
MM60-52B Series
52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm)
