SI5317-EVB

Active

Skyworks Solutions Inc.

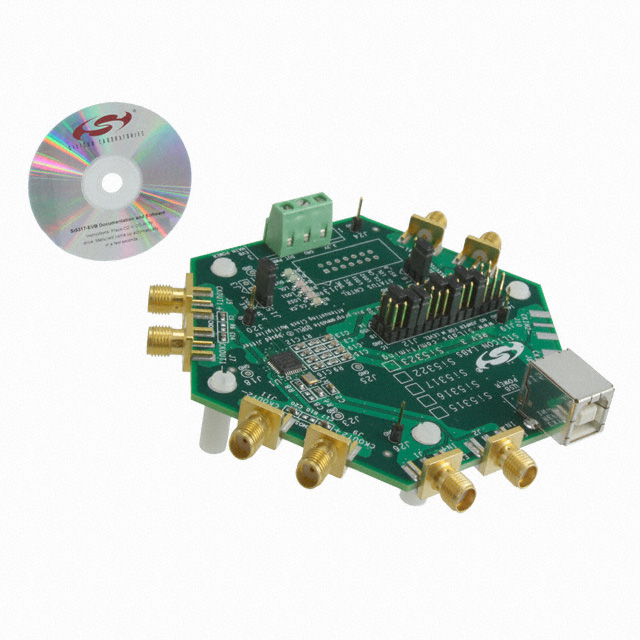

SI5317 CLOCK GENERATOR AND SYNTHESIZER EVALUATION BOARD

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

SI5317 CLOCK GENERATOR AND SYNTHESIZER EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	SI5317-EVB

Contents	Board(s)
Embedded	False
Function	Clock Generator
Primary Attributes	Powered by USB Port, External Power Supply
Secondary Attributes	On-Board LEDs
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	SI5317

Part	Secondary Attributes	Supplied Contents	Primary Attributes	Contents	Utilized IC / Part	Type	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Input	Number of Circuits	Package / Case	PLL	Ratio - Input:Output [custom]	Mounting Type	Frequency - Max [Max]
Skyworks Solutions Inc. SI5317-EVB	On-Board LEDs	Board(s)	External Power Supply Powered by USB Port	Board(s)	SI5317	Timing	Clock Generator
Skyworks Solutions Inc. SI5317D-C-GM						Jitter Cleaner		3.63 V	1.71 V	CML LVCMOS LVDS LVPECL	85 °C	-40 °C	36-QFN (6x6)	Clock Crystal	1	36-VFQFN Exposed Pad	Yes with Bypass	2:2	Surface Mount
Skyworks Solutions Inc. SI5317B-C-GM						Jitter Cleaner		3.63 V	1.71 V	CML LVCMOS LVDS LVPECL	85 °C	-40 °C	36-QFN (6x6)	Clock Crystal	1	36-VFQFN Exposed Pad	Yes with Bypass	2:2	Surface Mount	350 MHz
Skyworks Solutions Inc. SI5317B-C-GMR						Jitter Cleaner		3.63 V	1.71 V	CML LVCMOS LVDS LVPECL	85 °C	-40 °C	36-QFN (6x6)	Clock Crystal	1	36-VFQFN Exposed Pad	Yes with Bypass	2:2	Surface Mount	350 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 197.02

General part information

SI5317 - Clock Generator Timing Evaluation Board
