RAPC712BK

Active

Switchcraft Inc.

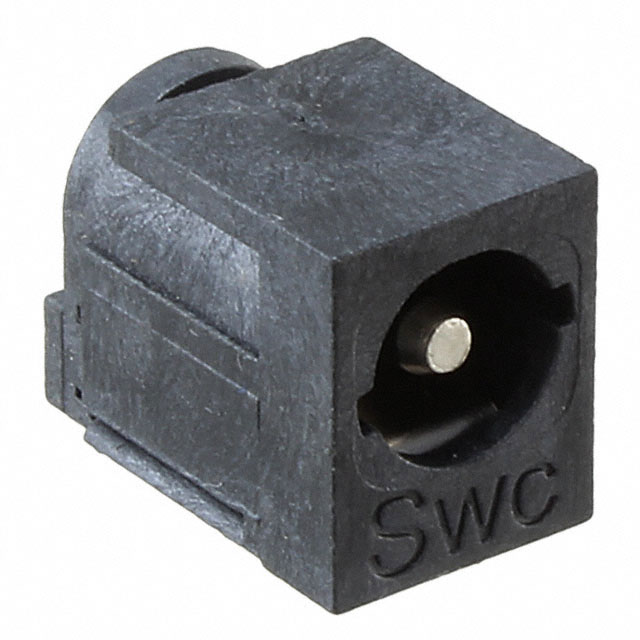

CONN PWR JACK 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR JACK 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RAPC712BK	RAPC71 Series

Actual Diameter	-	2.5 - 6.3 mm
Actual Diameter	-	0.098 - 0.248 in
Body Color	Black	Black
Body Material	-	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Brass, Copper Alloy
Contact Material - Plating	Tin	Tin
Contact Material - Plating	-	Silver
Current Rating (Amps)	5 A	5 A
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "	0.098 - 0.217 "
Insulation Color	-	Black
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions/Contacts	-	2 - 3 Conductors
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Operating Temperature	-	65 °C
Operating Temperature	-	-30 ░C
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Voltage - Rated	-	24 VDC

CONN DC POWER PL 2 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BULK

Part	Connector Type	Termination	Current Rating (Amps)	Internal Switch(s)	Gender	Body Color	Contact Material	Shielding	Number of Positions/Contacts	Housing Material	Contact Material - Plating [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Mounting Type	Voltage - Rated	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Contact Material - Plating	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Switchcraft Inc. RAPC712X	Jack	Solder Eyelet(s)	5 A	Normally Closed, Single Switch	Male	Black	Brass	Unshielded	2 Conductors, 3 Conductors	Thermoplastic	Silver	2.5 mm, 6.3 mm	0.098 in, 0.248 in	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Through Hole, Right Angle
Switchcraft Inc. RAPC712BKZ	Jack	Solder Eyelet(s)	5 A	Normally Closed, Single Switch	Male	Black	Copper Alloy	Unshielded	2 Conductors, 3 Conductors	Thermoplastic	Silver	2.5 mm, 6.3 mm	0.098 in, 0.248 in	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Through Hole, Right Angle	24 VDC	Black	65 °C	-30 ░C	Copper Alloy
Switchcraft Inc. RAPC712BK	Jack	Solder Eyelet(s)	5 A	Normally Closed, Single Switch	Male	Black	Copper Alloy	Unshielded		Thermoplastic				2.5 mm, 5.5 mm	0.098 ", 0.217 "	Through Hole, Right Angle						Tin	2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
