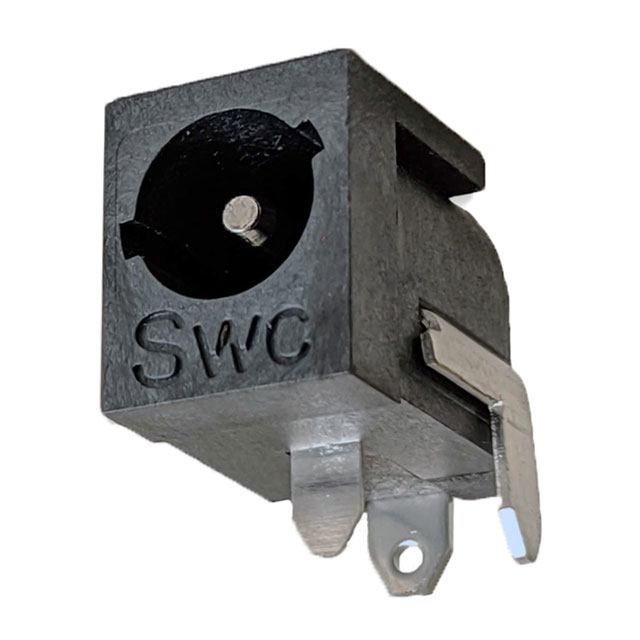

RAPC712BKZ

Active

Switchcraft Inc.

DC POWER CONNECTORS BKZ LOCKING SERIES 2.5MM RAPC MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RAPC712BKZ

Active

Switchcraft Inc.

DC POWER CONNECTORS BKZ LOCKING SERIES 2.5MM RAPC MOUNT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.51
		10	$ 2.28
		500	$ 1.71
		1000	$ 1.55
Sager	N/A	1	$ 2.19
		182	$ 2.07
		365	$ 2.02
		730	$ 1.99
		1095	$ 1.92

Description

General part information

BKZ Series

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RAPC712BKZ	BKZ Series

Actual Diameter	-	2 - 6.3 mm
Actual Diameter	-	2.5 mm
Actual Diameter	-	0.098 "
Actual Diameter	-	0.217 "
Actual Diameter	-	5.5 mm
Actual Diameter [diameter]	2.5 mm, 6.3 mm	2 - 6.3 mm
Actual Diameter [diameter]	0.098 in, 0.248 in	0.079 - 0.248 in
Body Color	Black	Black, Silver
Body Material	Copper Alloy	Copper Alloy, Brass
Connector Type	Jack	Jack, Plug
Contact Material	Copper Alloy	Copper Alloy, Brass
Contact Material - Plating	-	Tin
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	5 A	2 - 5 A
Gender	Male	Male, Female
Housing Material	Thermoplastic	Thermoplastic
Includes	-	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm	2 - 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "	0.079 - 0.217 in
Insulation Color	Black	Black
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Internal Switch(s)	-	False
Mating Length/Depth	-	0.374 in
Mating Length/Depth	-	9.5 mm
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Free Hanging (In-Line), Through Hole, Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Number of Positions/Contacts	-	2
Number of Positions/Contacts	-	2
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s), Solder
Voltage - Rated	24 VDC	24 VDC

BKZ Series

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Part	Actual Diameter [diameter]	Actual Diameter	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Plating [custom]	Gender	Body Material	Contact Material	Number of Positions/Contacts	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Current Rating (Amps)	Connector Type	Insulation Color	Voltage - Rated	Internal Switch(s)	Housing Material	Termination	Mounting Type	Mating Length/Depth	Mating Length/Depth	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Contact Material - Plating	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]
Switchcraft Inc. RAPC722BKZ	0.079 in, 0.248 in	2 mm, 6.3 mm	Unshielded	65 °C	-30 ░C	Silver	Male	Copper Alloy	Copper Alloy	2 Conductors, 3 Conductors	0.079 in, 0.217 "	2 mm, 5.5 mm	Black	5 A	Jack	Black	24 VDC	Normally Closed, Single Switch	Thermoplastic	Solder Eyelet(s)	Through Hole, Right Angle
Switchcraft Inc. 760BKZ			Unshielded				Female	Brass	Brass		0.098 ", 0.217 "	2.5 mm, 5.5 mm	Black, Silver	5 A	Plug	Black			Thermoplastic	Solder Eyelet(s)	Free Hanging (In-Line)	0.374 in	9.5 mm	2.5 mm	0.098 "	0.217 "	5.5 mm	Tin	1 Connector, 1 Handle, 1 Insulator Tube	2	2
Switchcraft Inc. RASH722BKZ	0.079 in, 0.248 in	2 mm, 6.3 mm	Unshielded	65 °C	-30 ░C	Silver	Male	Copper Alloy	Copper Alloy	2 Conductors, 3 Conductors	0.079 in, 0.217 "	2 mm, 5.5 mm	Black	5 A	Jack	Black	24 VDC	Normally Closed, Single Switch	Thermoplastic	Solder	Surface Mount, Right Angle, Through Hole
Switchcraft Inc. RASH712BKZ	0.098 in, 0.248 in		Unshielded	65 °C	-30 ░C	Silver	Male	Copper Alloy	Copper Alloy	2 Conductors, 3 Conductors	0.098 ", 0.217 "	2.5 mm, 5.5 mm	Black	5 A	Jack	Black	24 VDC	Normally Closed, Single Switch	Thermoplastic	Solder	Surface Mount, Right Angle, Through Hole											2.5 mm, 6.3 mm
Switchcraft Inc. RASM722BKZ	0.079 in, 0.248 in	2 mm, 6.3 mm	Unshielded	65 °C	-30 ░C	Silver	Male	Copper Alloy	Copper Alloy	2 Conductors, 3 Conductors	0.079 in, 0.217 "	2 mm, 5.5 mm	Black	5 A	Jack	Black	24 VDC	Normally Closed, Single Switch	Thermoplastic	Solder	Surface Mount, Right Angle
Switchcraft Inc. S760BKZ	0.079 in, 0.217 in		Unshielded				Female	Brass	Brass		0.079 in, 0.217 "	2 mm, 5.5 mm	Black, Silver	2 A	Plug	Black			Thermoplastic	Solder Eyelet(s)	Free Hanging (In-Line)	0.374 in	9.5 mm					Tin	1 Connector, 1 Handle, 1 Insulator Tube	2	2	2 mm, 5.5 mm
Switchcraft Inc. RAPC712BKZ	0.098 in, 0.248 in		Unshielded	65 °C	-30 ░C	Silver	Male	Copper Alloy	Copper Alloy	2 Conductors, 3 Conductors	0.098 ", 0.217 "	2.5 mm, 5.5 mm	Black	5 A	Jack	Black	24 VDC	Normally Closed, Single Switch	Thermoplastic	Solder Eyelet(s)	Through Hole, Right Angle											2.5 mm, 6.3 mm
Switchcraft Inc. RASM712BKZ	0.098 in, 0.248 in		Unshielded	65 °C	-30 ░C	Silver	Male	Copper Alloy	Copper Alloy	2 Conductors, 3 Conductors	0.098 ", 0.217 "	2.5 mm, 5.5 mm	Black	5 A	Jack	Black	24 VDC	Normally Closed, Single Switch	Thermoplastic	Solder	Surface Mount, Right Angle											2.5 mm, 6.3 mm
