TPA6047A4RHBR
Active2-W, STEREO CLASS-AB SPEAKER & HEADPHONE AMPLIFIER, 4.75-V LDO & ACTIVE HIGH ENABLE
Deep-Dive with AI
Search across all available documentation for this part.
TPA6047A4RHBR
Active2-W, STEREO CLASS-AB SPEAKER & HEADPHONE AMPLIFIER, 4.75-V LDO & ACTIVE HIGH ENABLE
Technical Specifications
Parameters and characteristics for this part
| Specification | TPA6047A4RHBR |
|---|---|
| Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Max Output Power x Channels @ Load | 2.6 W, 100 mW |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 2-Channel (Stereo) with Stereo Headphones |

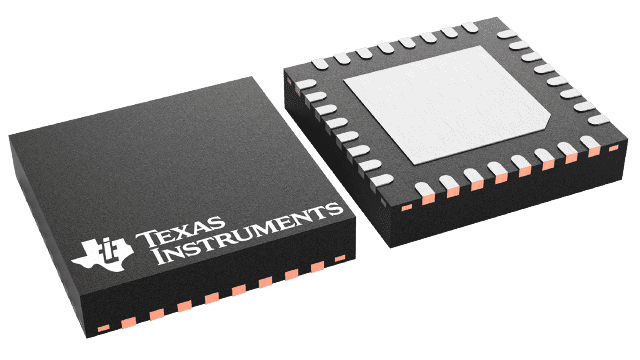

| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Type | Class AB |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPA6047 Series
2-W, stereo Class-AB speaker & headphone amplifier, 4.75-V LDO & active high enable
| Part | Max Output Power x Channels @ Load | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Type | Mounting Type | Features | Supplier Device Package | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPA6047A4RHBRThe TPA6047A4 is a stereo audio power amplifier and DirectPath headphone amplifier in a thermally enhanced, space-saving, 32-pin QFN package. The speaker amplifier is capable of driving 2.1 W per channel continuously into 4-Ω loads at 5 V. The headphone amplifier achieves a minimum of 100 mW at 10% THD+N from a 5-V supply. A built-in internal 4-step gain control for the speaker amplifier and a fixed -1.5 V/V gain for the headphone amplifier minimizes external components needed.
Independent shutdown control and dedicated inputs for the speaker and headphone allow the TPA6047A4 to simultaneously drive both headphones and internal speakers. Differential inputs to the speaker amplifiers offer superior power-supply and common-mode noise rejection.
The TPA6047A4 is a stereo audio power amplifier and DirectPath headphone amplifier in a thermally enhanced, space-saving, 32-pin QFN package. The speaker amplifier is capable of driving 2.1 W per channel continuously into 4-Ω loads at 5 V. The headphone amplifier achieves a minimum of 100 mW at 10% THD+N from a 5-V supply. A built-in internal 4-step gain control for the speaker amplifier and a fixed -1.5 V/V gain for the headphone amplifier minimizes external components needed.
Independent shutdown control and dedicated inputs for the speaker and headphone allow the TPA6047A4 to simultaneously drive both headphones and internal speakers. Differential inputs to the speaker amplifiers offer superior power-supply and common-mode noise rejection. | 2.6 W, 100 mW | 5.5 V | 4.5 V | 85 °C | -40 °C | 2-Channel (Stereo) with Stereo Headphones | Class AB | Surface Mount | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | 32-VQFN (5x5) | 32-VFQFN Exposed Pad |
Description
General part information
TPA6047 Series
The TPA6047A4 is a stereo audio power amplifier and DirectPath headphone amplifier in a thermally enhanced, space-saving, 32-pin QFN package. The speaker amplifier is capable of driving 2.1 W per channel continuously into 4-Ω loads at 5 V. The headphone amplifier achieves a minimum of 100 mW at 10% THD+N from a 5-V supply. A built-in internal 4-step gain control for the speaker amplifier and a fixed -1.5 V/V gain for the headphone amplifier minimizes external components needed.
Independent shutdown control and dedicated inputs for the speaker and headphone allow the TPA6047A4 to simultaneously drive both headphones and internal speakers. Differential inputs to the speaker amplifiers offer superior power-supply and common-mode noise rejection.
The TPA6047A4 is a stereo audio power amplifier and DirectPath headphone amplifier in a thermally enhanced, space-saving, 32-pin QFN package. The speaker amplifier is capable of driving 2.1 W per channel continuously into 4-Ω loads at 5 V. The headphone amplifier achieves a minimum of 100 mW at 10% THD+N from a 5-V supply. A built-in internal 4-step gain control for the speaker amplifier and a fixed -1.5 V/V gain for the headphone amplifier minimizes external components needed.
