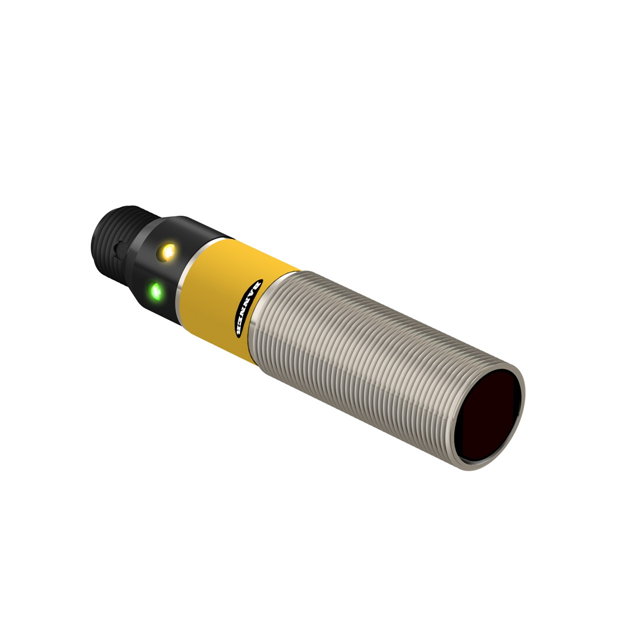

Specification	M18SN6LPQ

Connection Method	Connector
Ingress Protection	IP69K, NEMA 6P
Light Source	Infrared
Light Source Wavelength (Infrared)	680 nm
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Output Configuration	NPN
Response Time	3 ms
Sensing Distance	78.74 "
Sensing Method	Polarized
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

M18SN6 Series

Part	Ingress Protection	Sensing Distance	Operating Temperature (Min)	Operating Temperature (Max)	Light Source	Light Source Wavelength (Infrared)	Connection Method	Output Configuration	Response Time	Sensing Method	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
BANNER ENGINEERING M18SN6LPQ	IP69K NEMA 6P	78.74 "	-40 °C	70 °C	Infrared	680 nm	Connector	NPN	3 ms	Polarized	10 VDC	30 VDC
