CWSC11JCACS

Obsolete

NKK Switches

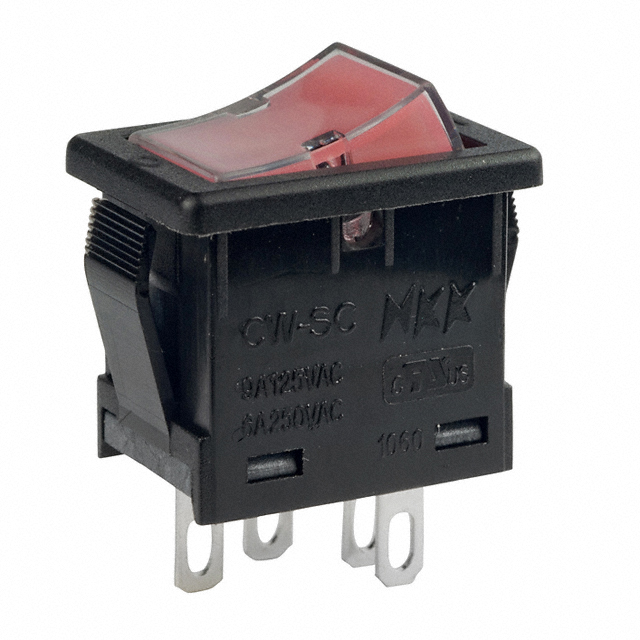

SWITCH ROCKER SPST 9A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SPST 9A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CWSC11JCACS

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	UL
Circuit	SPST
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	9 A
Electrical Life	10000 Cycles
Features	Audible Click
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.95 VDC
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Features	Actuator Marking	Termination Style	Circuit	Color - Actuator/Cap	Electrical Life	Actuator Type	Mechanical Life	Current Rating (Amps)	Switch Function	Approval Agency	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches CWSC11JCACS	-10 °C	50 °C	Panel Mount Snap-In	125 V	12.9 mm	Rectangular	19.2 mm	Audible Click	No Marking	Quick Connect - 0.110" (2.8mm)	SPST	Clear (Red Filter/Diffuser)	10000 Cycles	Concave (Curved) - Illuminated	30000 Steps	9 A	On-Off	UL	1.95 VDC	LED Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 9A (AC) 125 V Panel Mount, Snap-In
