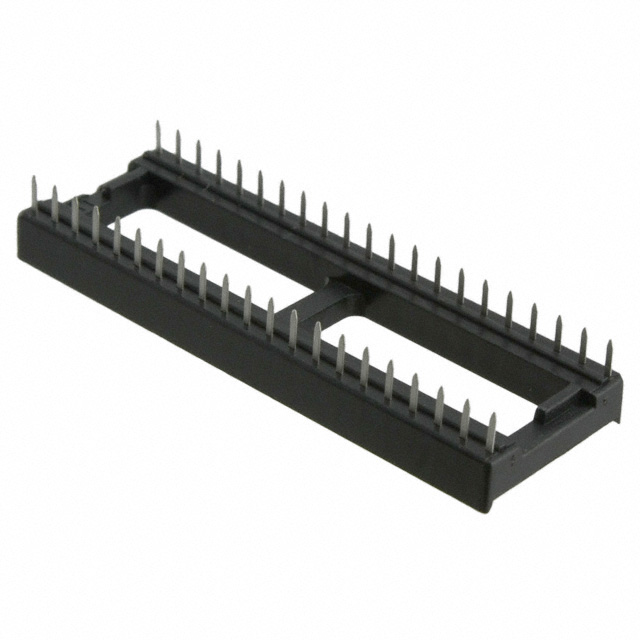

4842-6000-CP
Active3M (TC)
IC & COMPONENT SOCKET, 42 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE
Deep-Dive with AI
Search across all available documentation for this part.
4842-6000-CP
Active3M (TC)
IC & COMPONENT SOCKET, 42 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4842-6000-CP |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3.43 µm |
| Contact Finish Thickness - Mating | 135 µin |
| Contact Finish Thickness - Post | 135 µin |
| Contact Finish Thickness - Post | 3.43 µm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 42 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.93 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.57 | |||
| 2160 | $ 0.56 | |||
Description
General part information
4842 Series
42 (2 x 21) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
