14-810.910

Active

EAO

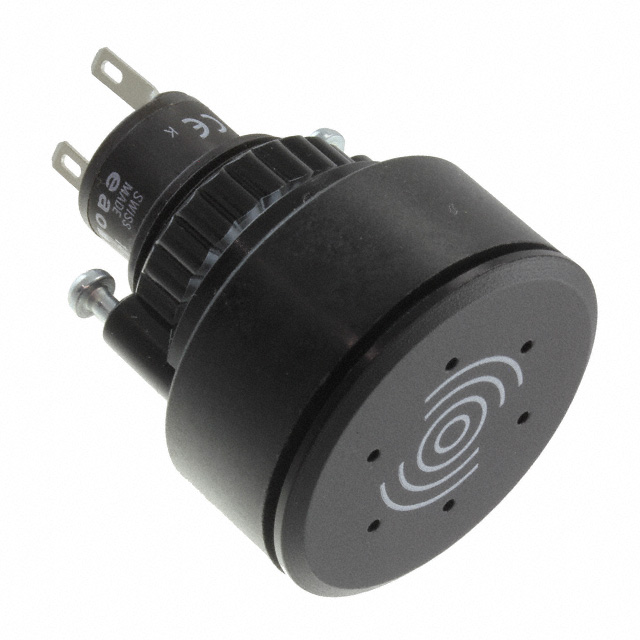

BUZZER PIEZO 24V 35MM TH

Search across all available documentation for this part.

Active

EAO

BUZZER PIEZO 24V 35MM TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14-810.910	14-810 Series

	-	-
Approval Agency	CE	CE
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Height - Seated (Max)	-	49 mm
Height - Seated (Max)	-	1.929 in
Ingress Protection	IP40	IP65 - Dust Tight, Water Resistant, IP40
Input Type	DC	DC
Mounting Type	Through Hole	Through Hole
Port Location	Top	Top
Size / Dimension [diameter]	1.378 in	1.142 - 1.378 in
Size / Dimension [diameter]	35 mm	29 - 35 mm
Termination	Solder Tabs	Solder Tabs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

BUZZER PIEZO 24V 29MM TH

Part	Ingress Protection	Input Type	Termination	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Approval Agency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Driver Circuitry
EAO 14-810.902	IP65 - Dust Tight, Water Resistant	DC	Solder Tabs	Through Hole	1.142 in	29 mm	Top	CE	49 mm	1.929 in	Indicator, Internally Driven
EAO 14-810.002	IP65 - Dust Tight, Water Resistant	DC	Solder Tabs	Through Hole	1.142 in	29 mm	Top		49 mm	1.929 in	Indicator, Internally Driven
EAO 14-810.002
EAO 14-810.910	IP40	DC	Solder Tabs	Through Hole	1.378 in	35 mm	Top	CE			Indicator, Internally Driven

General part information

Buzzers Indicator, Internally Driven Through Hole Solder Tabs
