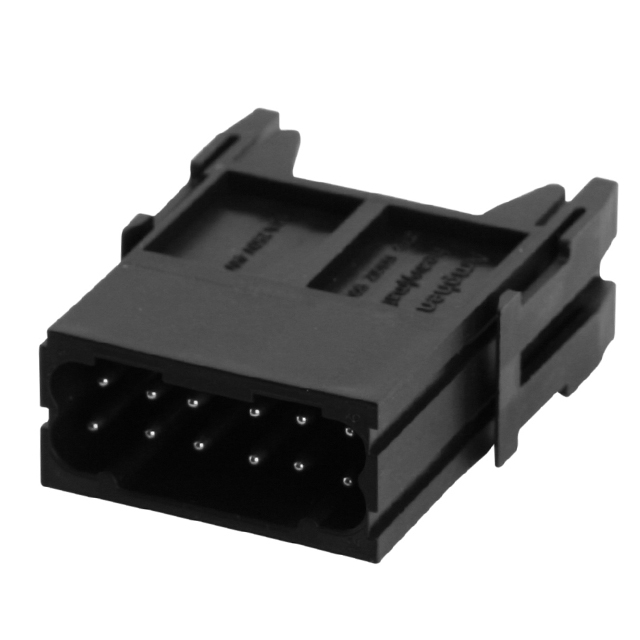

C14610A01250015

Active

Amphenol Tuchel Industrial

MODULE MALE 12POS CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

MODULE MALE 12POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A01250015

Color	Black
Connector Type	Module without Contacts
Contact Type	DD, M, C146 D, heavy\|mate®
Gender	Male
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	400 V

Part	Voltage Rating	Gender	Housing Material	Termination Style	Material Flammability Rating	Contact Type	Connector Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color
Amphenol Tuchel Industrial C14610A01250015	400 V	Male	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	UL94 V-0	C146 D DD heavy\|mate® M	Module without Contacts	12	125 °C	-40 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Male Module without Contacts Black 12 Position Crimp

Technical documentation and resources
